HT-I12 large children test finger strictly complies with GB/T16842, IEC61032 and other international standards. It is specially designed to simulate the test of children aged 36 months to 14 years old coming into contact with dangerous parts. It can accurately detect the safety of electrical appliances and other products to ensure the safety of children.
Öğe Hayır. :
HT-I12Minimum Sipariş Miktarı (MOQ) :
1 SetÖdeme yöntemi :
T/T, L/CFiyat :
NegotiatableÜrün oranı :
ChinaTedarik Yeteneği :
30 set per monthKurşun zamanı :
20 daysGeleneksel ambalaj :

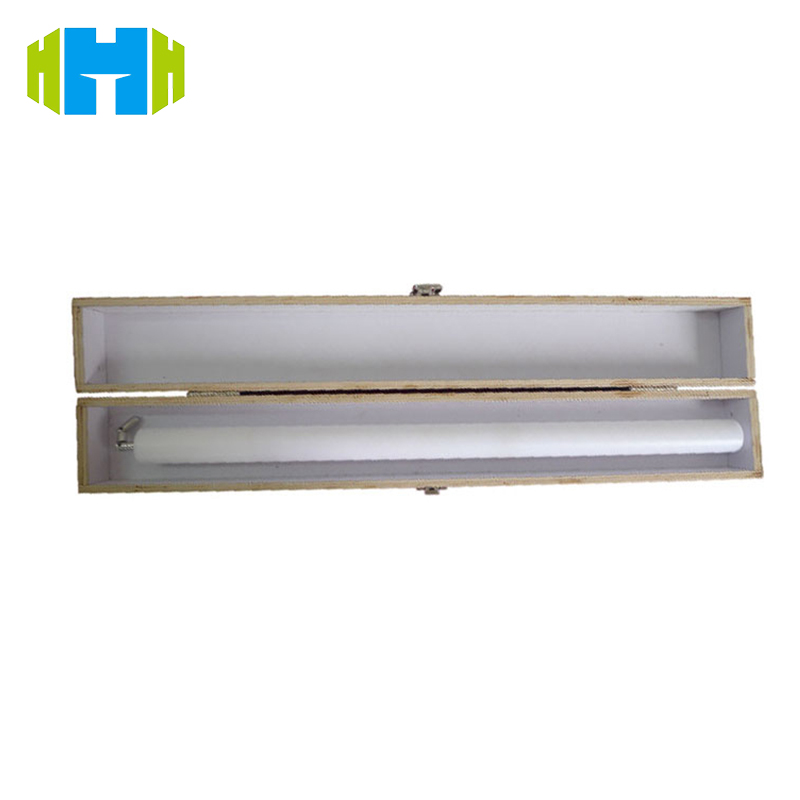

Aluminum BoxIEC61032 Children Finger Probe 18 HT-I12 Hemispherical R4.3±0.05 Finger Probe Diameter Ф8.6±0.1
Product Introduction

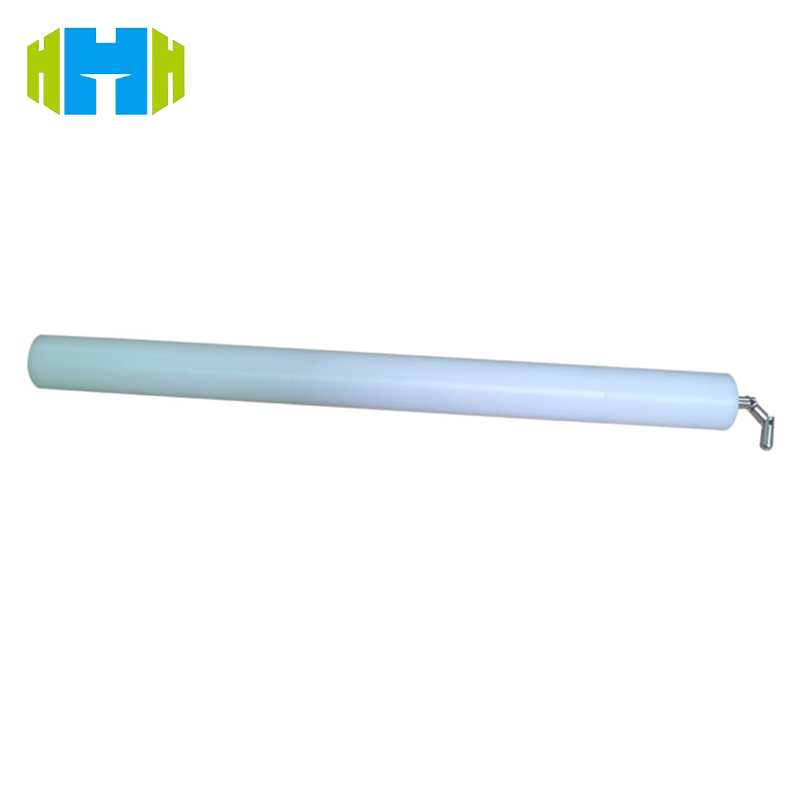

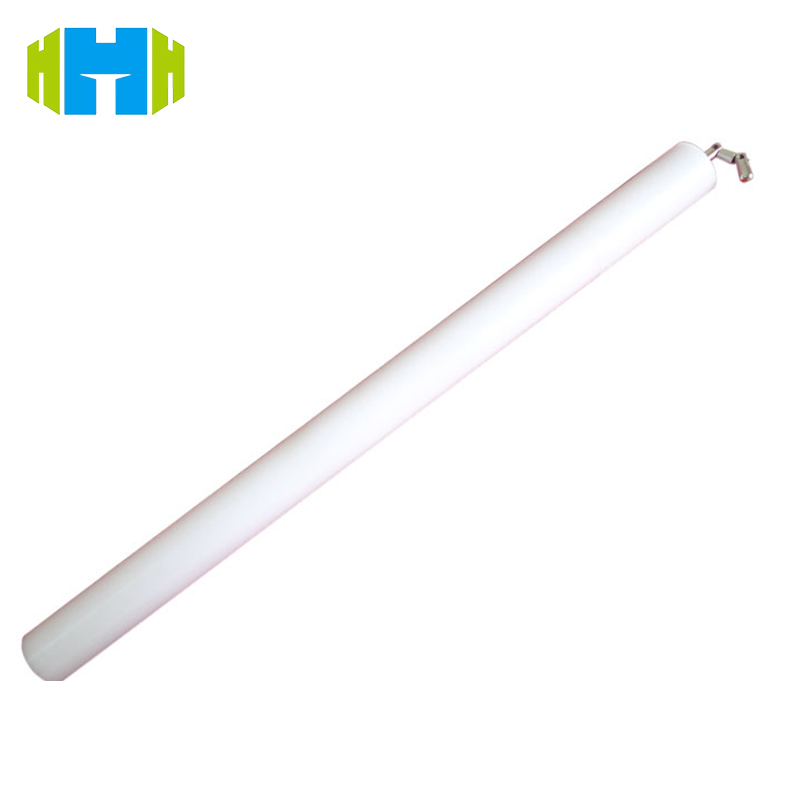

The HT-I12 Large Child Test Finger is a professional safety testing tool used to evaluate whether the live parts or mechanical parts of the outer shell of electrical appliances, machinery and other products can be touched by children aged 36 months to 14 years old, ensuring the safety of the product in actual use and preventing children from accidentally touching dangerous parts.
International Reference Standards
GB/T16842 Figure 12: Specifies the technical requirements and test methods for test fingers.
IEC61032 Figure 12: Test finger standard for verifying personnel and equipment protection.
GB4706.1: General requirements for the safety of household and similar electrical appliances.
IEC60335.1: Safety of household and similar electrical appliances Part 1: General requirements.
UL1017: Safety standard for vacuum cleaners, hair dryers and household floor care machines.
Product Usage
Used to simulate children aged 36 months and under 14 years old to test whether they can touch dangerous parts of electrical products (such as live parts of the housing or mechanical parts) to ensure that the product meets safety standards and is safe for children to use.
Test objects
Mainly for easily accessible live parts or mechanical parts of the housing, such as live parts of electrical housings, moving parts of mechanical devices, etc.
Test items
Test whether these parts can be touched by children aged 36 months to 14 years old, evaluate the safety protection performance of the product, and ensure that children will not be in danger during normal use or accidental contact.

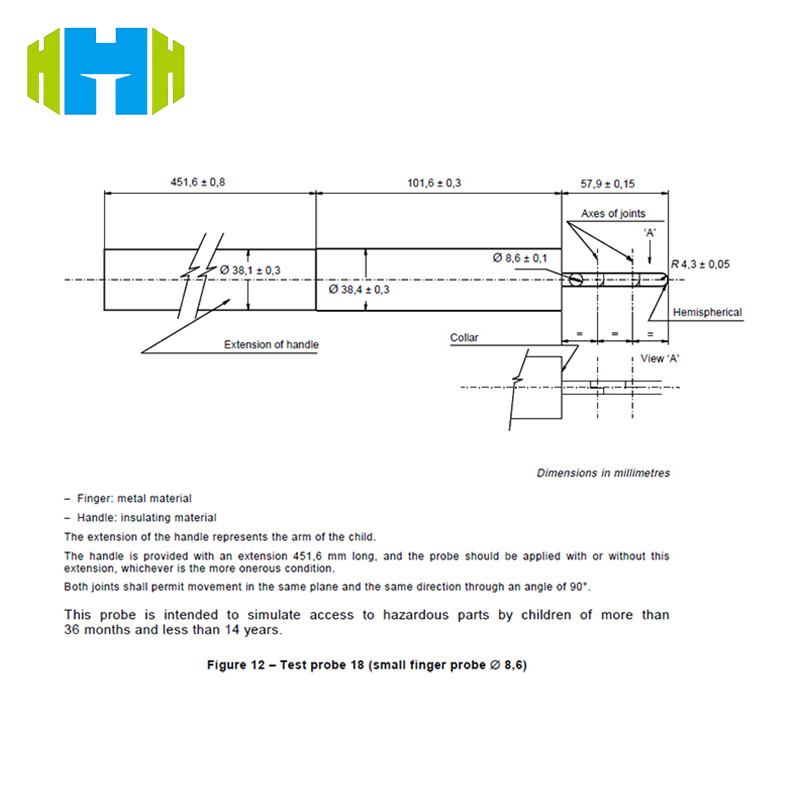

Parameter:
| Name/Model | Children Finger Probe 18 /HT-I12 |
| Hemispherical | R4.3±0.05 |
| Finger probe diameter | Ф8.6±0.1 |
| Finger probe length | 57.9±0.15 |
| Joint distance | 19.3 |
| Axes of joints diameter | Ф38.4±0.3 |
| Axes of joints length | 101.6±0.3 |
| Handle diameter | Ф38.1±0.3 |
| Handle length | 451.6±0.8 |
