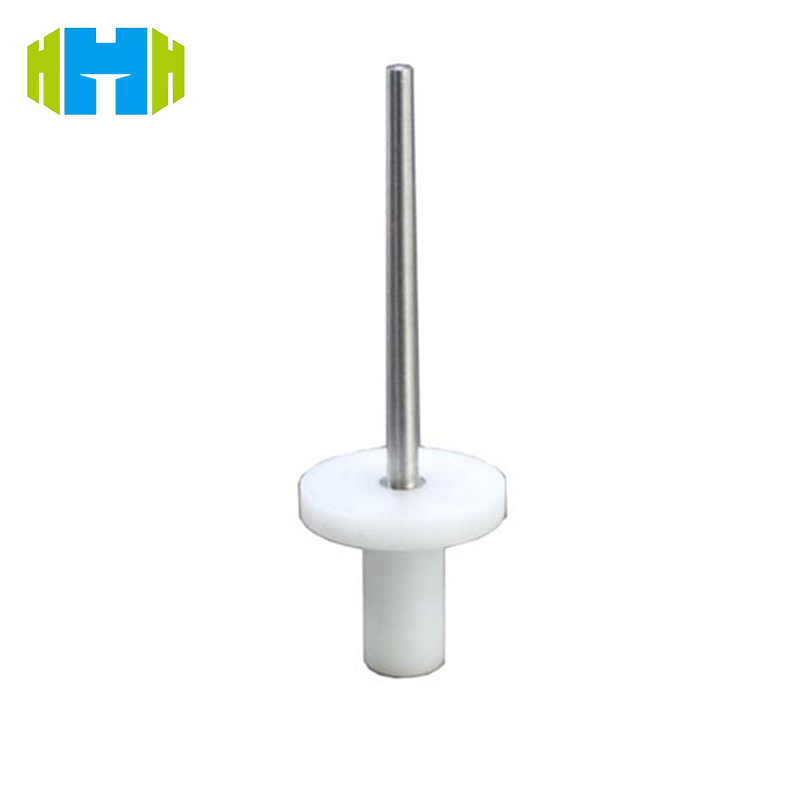

This pin is intended to be used on appliances for verifying the inaccessibility of hazardous live parts or hazardous mechanical parts which are liable to be touched accidentally by a tool, for example a screwdriver or similar pointed object in normal use. It meets IEC61032 figure 8 test probe 12. Handle is made of nylon while the tip is made of hardened steel.Customizable: It can be used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer).
HT-U09 fan blade probe strictly complies with UL507 Figure 8.2 (S2140A) standard and is specially designed for protection testing of fan impellers and internal moving parts. It is carefully crafted by the source manufacturer to ensure fan safety.
This pin is intended to verify the protection against access to hazardous live parts in class 0 equipment and class II equipment. It conforms to IEC61032 figure 9 Test probe13, IEC60950 figure 2B, IEC60335 and IEC60065 standard requirements.
Customizable: It can be used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer).
This test plug conforms to IEC60065 Figure 8 standard requirement. It is used to test the antenna coaxial socket which is installed on the device and equipped with parts or components which isolate the hazardous live parts and accessible parts. Its structure should be able to withstand the expected mechanical stress that might encounter during the use process. It is made entirely of stainless steel. All parts are machined with precision.
HT-U08 Test Rod Probe is designed strictly in accordance with UL1278 Fig 10.4 standard and is specially designed for safety protection detection of heating elements and their components. Its unique nylon handle + hard steel probe combination takes into account both operating comfort and detection reliability. It is a powerful assistant in the field of electrical safety detection and provides accurate protection for the safety protection of heating equipment.
The UL accessibility probe is also called UL articulated probe or jointed test finger probe. It conforms to many standard requirement of UL474 Fig 5.1, UL507 Fig 9.2(PA100A), UL982 Fig 7.1, UL1017 Fig 2, UL1062 Fig1.2, UL1278Fig 8.3, UL1310 Fig 16.2, UL6500 Fig14, UL60065 Fig14 and UL60950 Fig NAF.1.
