Test Finger Probe is a professional testing tool that strictly complies with authoritative standards such as GB4706.1 Figure 7, IEC60335 Figure 7, etc. It is mainly used to test whether the fixing method of non-detachable parts that prevent contact with live parts, waterproof or prevent contact with moving parts can withstand the mechanical stress in normal use.
Öğe Hayır. :
HT-I22Minimum Sipariş Miktarı (MOQ) :
1 setÖdeme yöntemi :
T/TFiyat :
NegotiationÜrün oranı :
ChinaTedarik Yeteneği :
10 Sets per monthKurşun zamanı :
5 daysGeleneksel ambalaj :

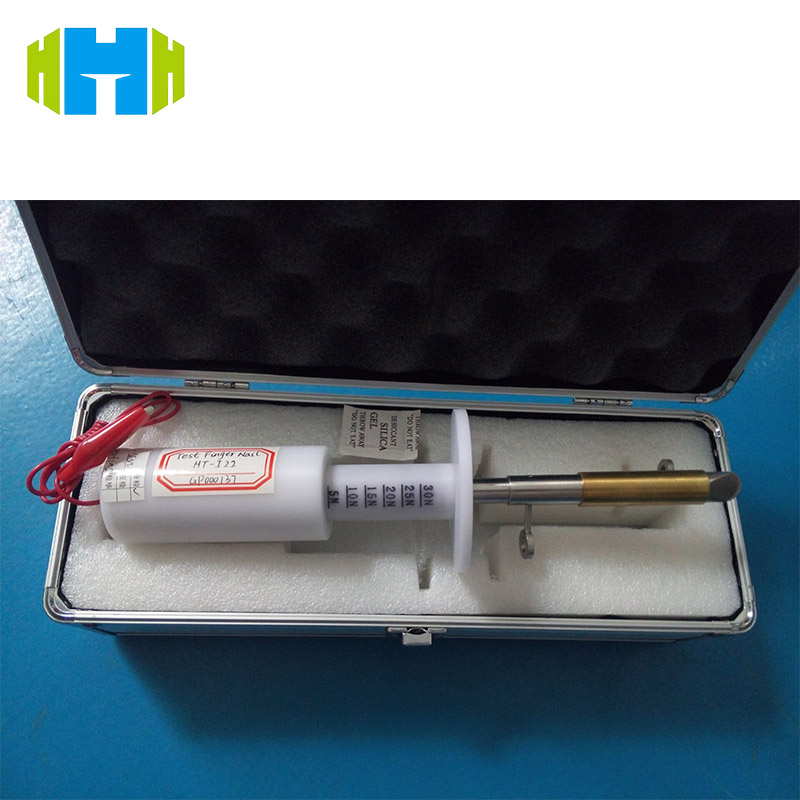

Aluminum BoxIEC 60335-1 Test Finger Probe For Test Nails The maximum applied pressure is 30N
Product description of Test Finger Probe:
1. The test nails are made according to GB4706.1-2005, IEC60335-1 and UL standards.
2. The test nail is mainly used to test whether non-detachable parts that are exposed to electric shock or contact moving parts can withstand the mechanical stress that occurs during normal use and reach the specified protection level.
Sample range of Test Finger Probe:
Non-detachable parts of electrical appliances that are protected against contact with live parts, waterproof or protected against contact with moving parts.
Application of Test Finger Probe:
For the surface pressure of the scratch test of 10N, the material on the scratched surface cannot be separated. Insert a test finger into any gap or joint, and apply a 10N side pulling force vertically, but do not twist or pry, and the relevant parts must not fall off or be damaged. Insert a test finger into any gap or joint, and apply a 10N side pulling force in the direction of component disassembly, but do not twist or pry, and the relevant components must not fall off or be damaged.
Technical parameters of Test Finger Probe:
| Model | HT-I22 |
| Probe length | 80mm |
| Nail length | 37° |
| Trial finger diameter | Φ12 |
| Apply pressure value | 10N,20N,30N |
| Reference standard | GB4706.1-2005 Figure 7, IEC60335-1 Figure 7 |

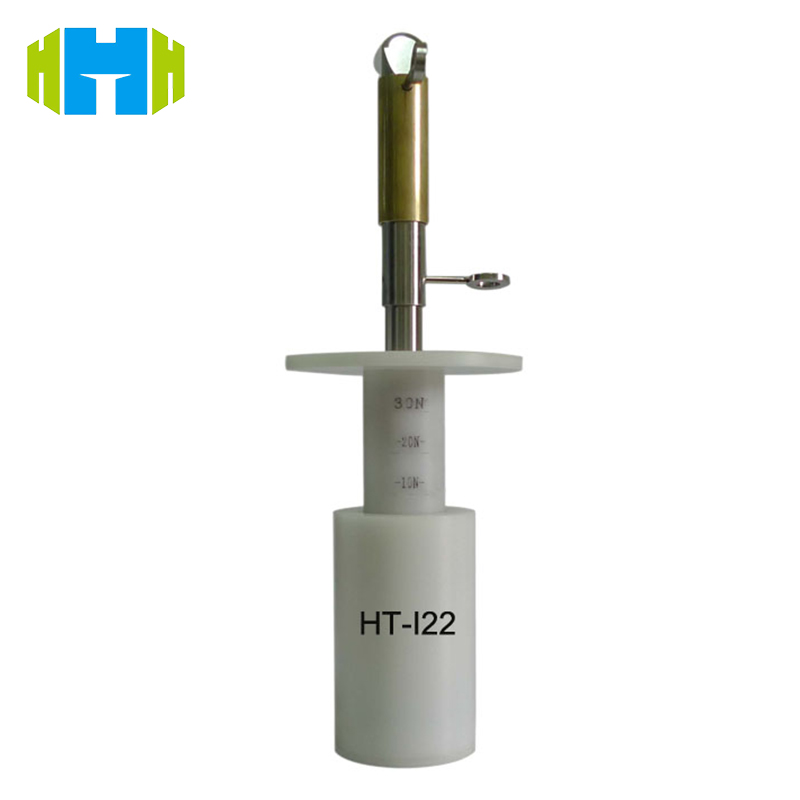

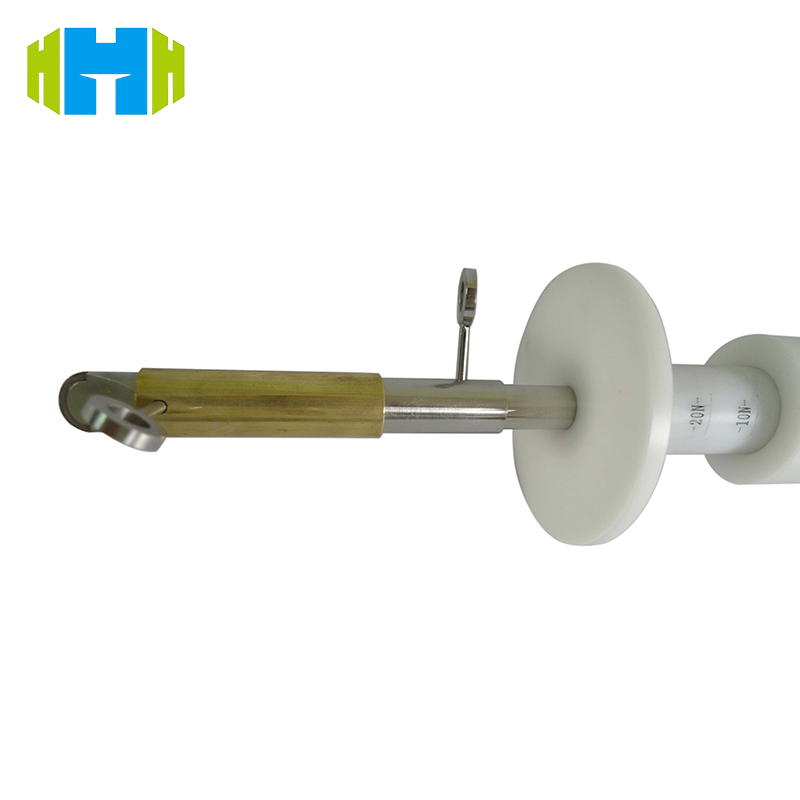

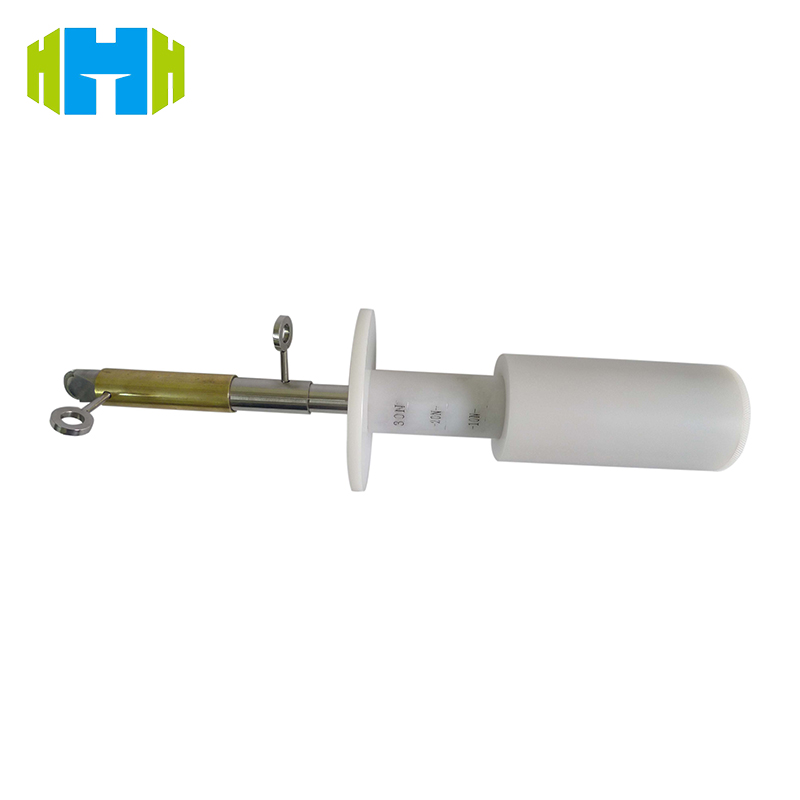

Detail image of Test Finger Probe:
