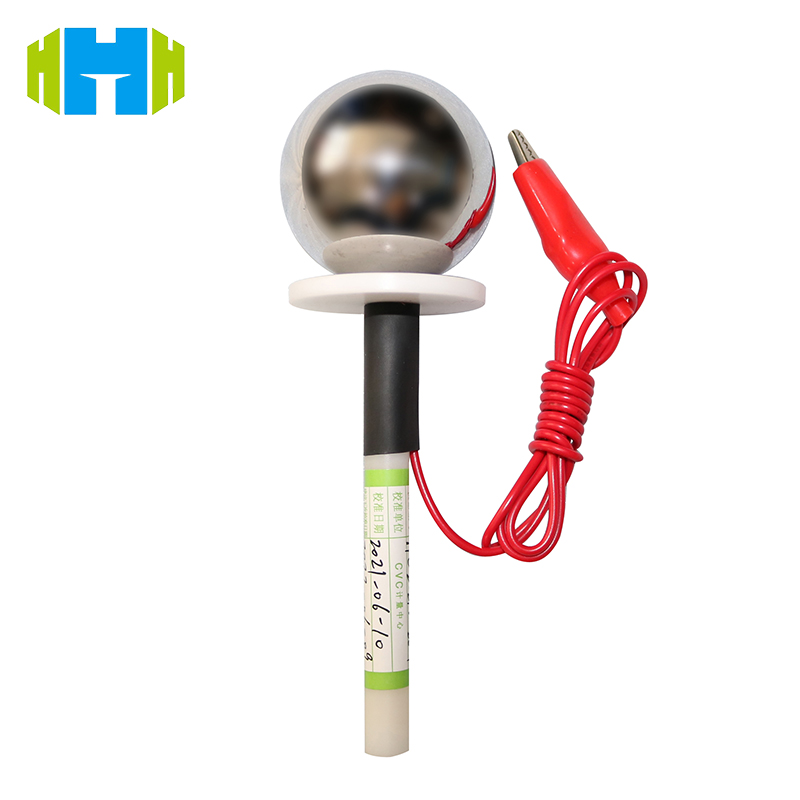

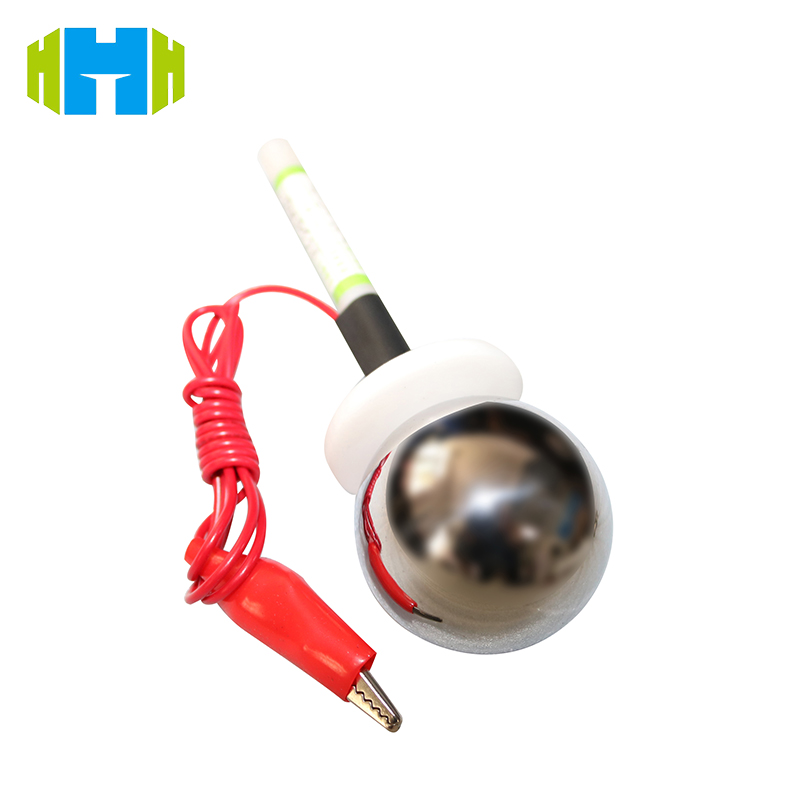

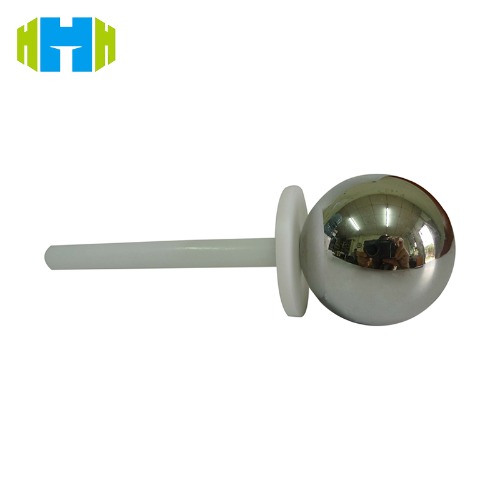

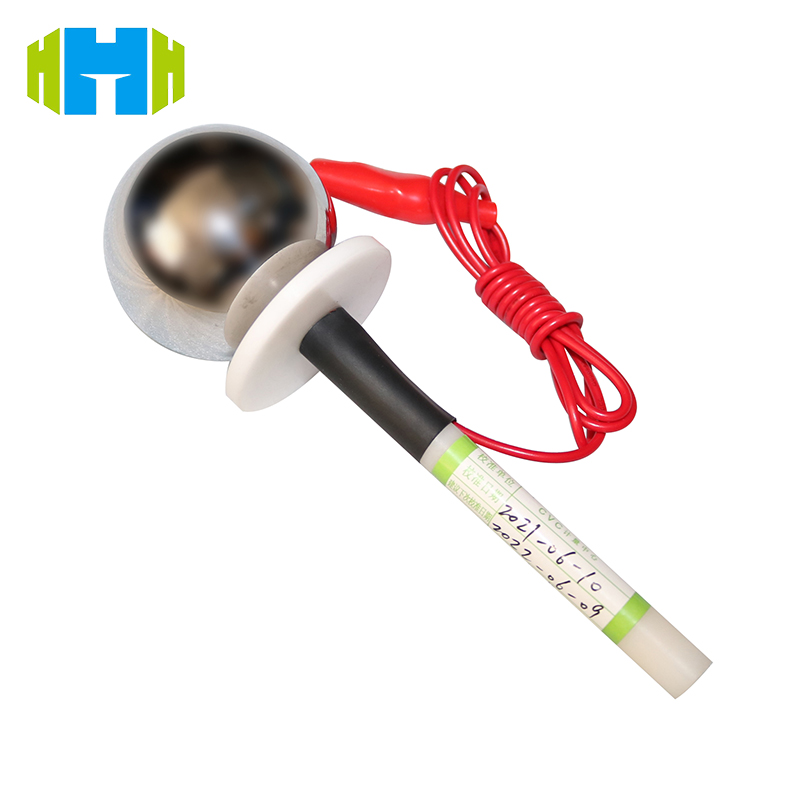

This probe made of stainless steel and nylon, the sphere made of stainless steel, the baffle and handle made of nylon. The diameter of sphere is 50mm. Baffle diameter is 45mm. Baffle thickness is 4 mm. Handle diameter is 10mm. Handle length is 100mm. It has no force, but there is an M6 threaded hole at the end of the handle to connect the push-pull meter.
Öğe Hayır. :
HT-I01Minimum Sipariş Miktarı (MOQ) :
1 setÖdeme yöntemi :
L/C, T/TFiyat :
NegotiatableÜrün oranı :
ChinaTedarik Yeteneği :
30 sets / per monthKurşun zamanı :
3 daysGeleneksel ambalaj :
Aluminum Box50mm Diameter Test Finger Probe Made of Stainless Steel and Nylon for IEC61032 Fig.1
Standard:

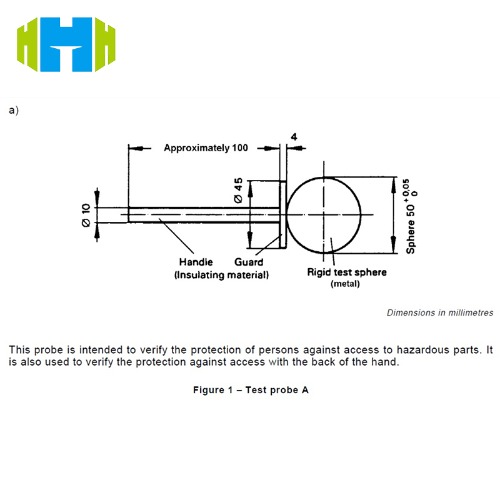

IEC 61032 ‘Protection of persons and equipment by enclosures – Probes for verification’ figure 1 test probe A.
IEC 60529 Degrees of protection provided by enclosures (IP Code) IP1X
IEC 60335-1 ‘Household and similar electrical appliances – Safety – Part 1: General requirements’
Application:
This probe is intended to verify the protection of persons against access to hazardous parts. It is also used to verify the protection against access with the back of the hand.
Access probes of IEC 60529 (IP code) to verify protection of persons against access to hazardous live parts or hazardous mechanical parts
Feature:
A hole (M6) can be made at the end of the handle for connection with a push-pull gauge. The model with ‘T’ means that this model is with force.
Parameter:
| Model | HT-I01 | HT-I01T |
| Name |
Test probe A Test Finger Probe |
Test probe A with force |
| Rigid test ball diameter (metal) | SФ50+0.05 0 | SФ50+0.05 0 |
| Baffle diameter (nylon) | Ф45±0.2 | Ф45±0.2 |
| Baffle thickness | 4 | 4 |
| Handle diameter | Ф10 | Ф10 |
| Handle length (nylon) | 100 | 100 |
| Force | ---- | With force of 0-50N |
