This pin is intended to be used on appliances for verifying the inaccessibility of hazardous live parts or hazardous mechanical parts which are liable to be touched accidentally by a tool, for example a screwdriver or similar pointed object in normal use. It meets IEC61032 figure 8 test probe 12. Handle is made of nylon while the tip is made of hardened steel.Customizable: It can be used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer).
Öğe Hayır. :
HT-I08Minimum Sipariş Miktarı (MOQ) :
1 setÖdeme yöntemi :
L/C, T/TFiyat :
NegotiatableÜrün oranı :
ChinaTedarik Yeteneği :
30 sets / per monthKurşun zamanı :
3 daysGeleneksel ambalaj :

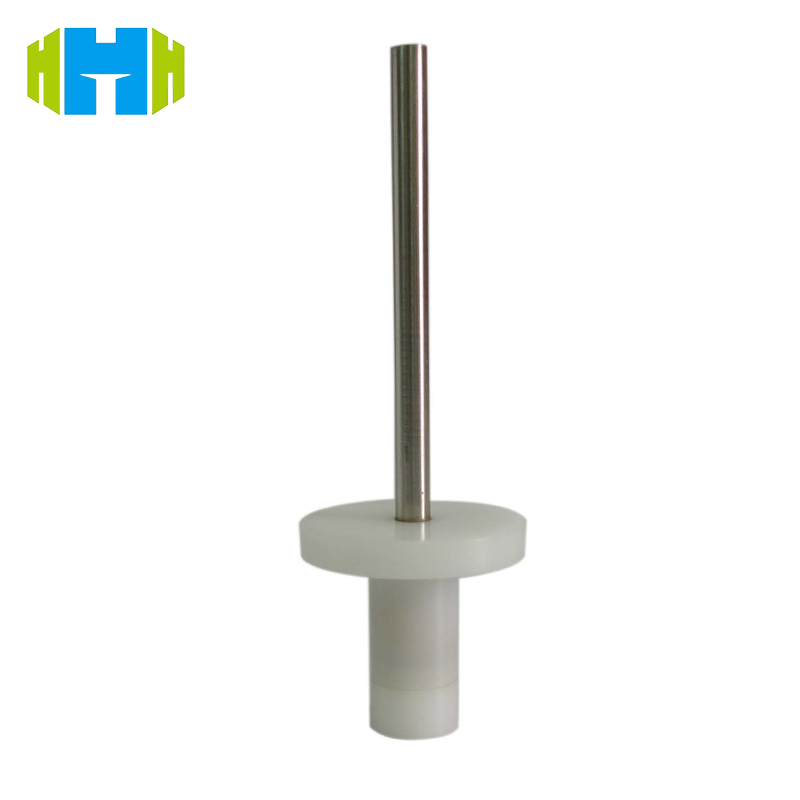

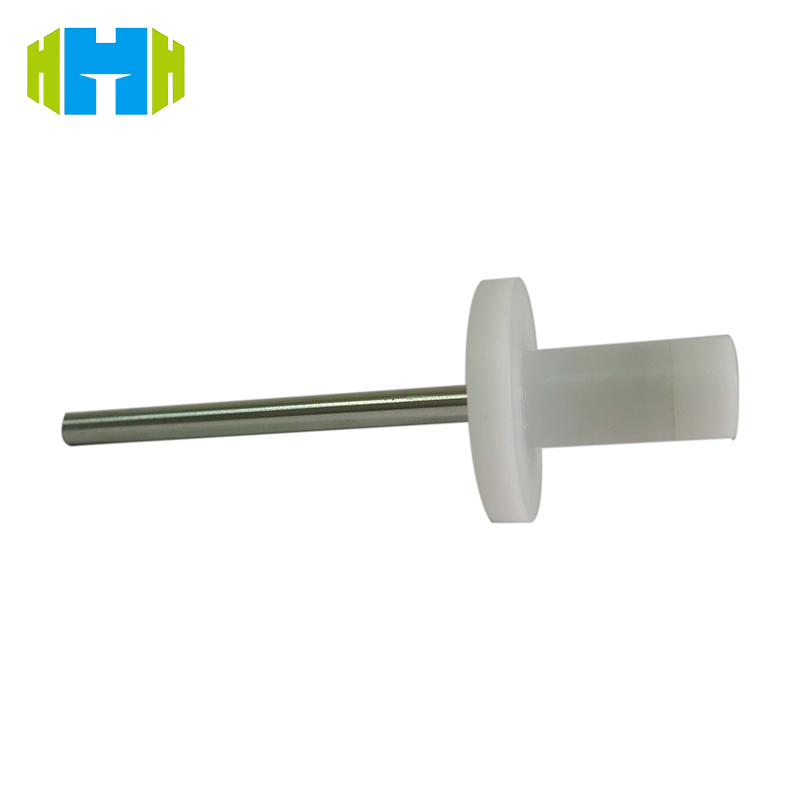

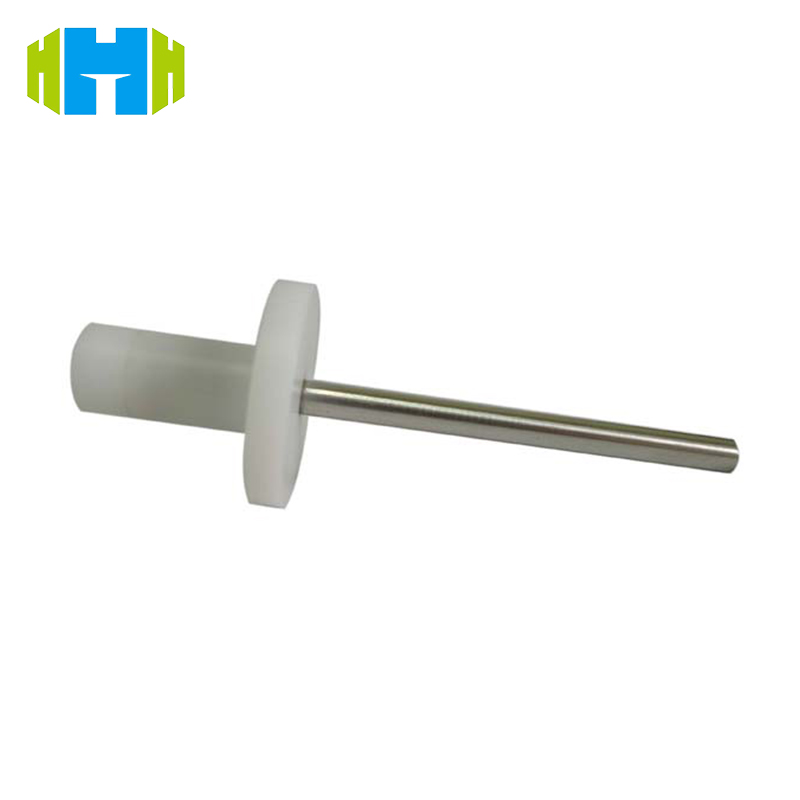

Cartoon BoxLong Cylindrical 50mm Length Pin IEC 61032 Test Probe 12
Standard:
IEC 61032 ‘Protection of persons and equipment by enclosures – Probes for verification’ figure 8 test probe 12.
Application:
Other access probes to verify protection of persons against access to hazardous live parts or hazardous mechanical parts.
This pin is intended to be used on appliances for verifying the inaccessibility of hazardous live parts or hazardous mechanical parts which are liable to be touched accidentally by a tool, for example a screwdriver or similar pointed object in normal use.
Feature:
It can be used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push gauge).
Parameters:
| Model | HT-I08 |
| Name |
Long Pin Test Probe 12 Test Finger Probe |
| Metal pin diameter | Ф4±0.05 |
| Metal pin length | 50±0.15 |
| Baffle diameter | Ф25±0.2 |
| Baffle thickness | 4 |
| Handle diameter | Ф10 |
| Handle length | 20 |
