The test rod probe confirms to IEC61032 figure 15 requirements. It is intended to verify the protection provided by fan guards against access to hazardous mechanical parts. It is equipped with nylon handle.Customizable: It is used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer).
Öğe Hayır. :
HT-I15Minimum Sipariş Miktarı (MOQ) :
1 setÖdeme yöntemi :
T/TFiyat :
NegotiatableÜrün oranı :
ChinaTedarik Yeteneği :
100 set per monthKurşun zamanı :
7 DaysGeleneksel ambalaj :

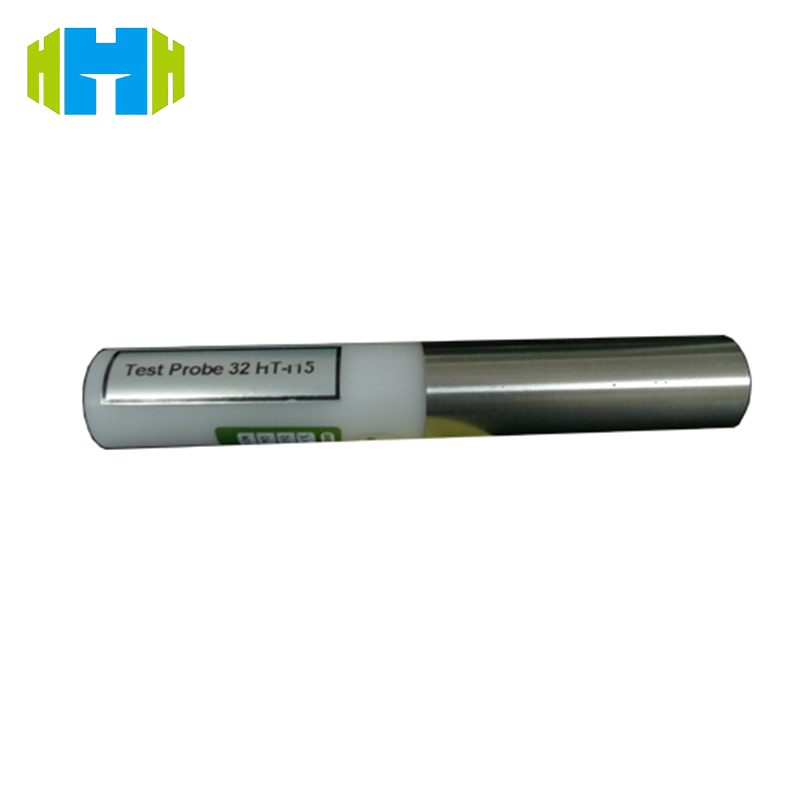

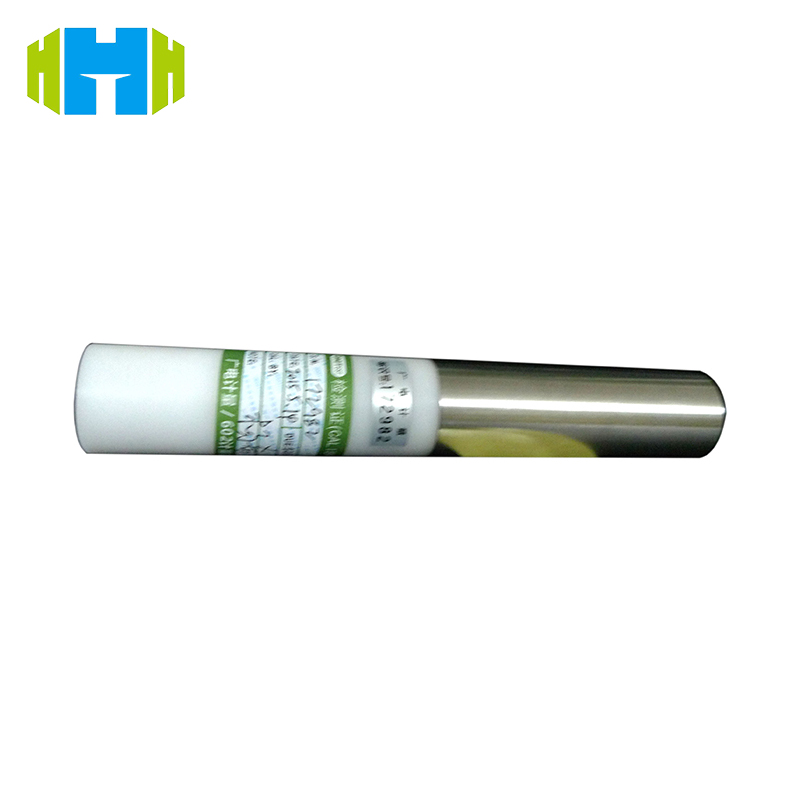

Aluminum BoxEnclosure Protection Test Finger Probe Test Rod IEC61032 Figure 15

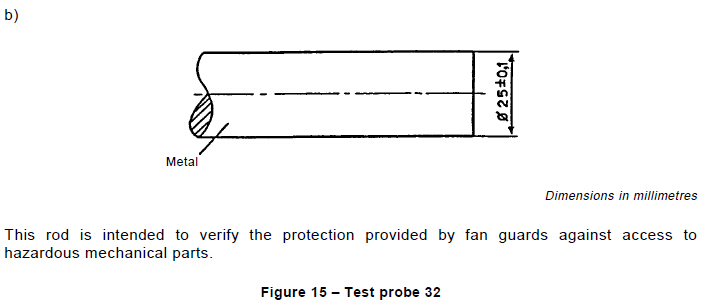

Standard:IEC61032 test probe 32 figure 15.
Application:It is intended to verify the protection provided by fan guards against access to hazardous mechanical parts. It is equipped with nylon handle.
Test sample:Easily accessible enclosure live parts or mechanical parts.
Feature:It is used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer).
Main specification and corresponding technical parameters:
|
Parameters /Mode |
Test probe 32 HT-I15 |
|
1 |
Ф25±0.1 |
|
2 |
80±0.2 |
