This test sphere probe confirms to IEC61032 figure 6 probe 2,IEC60529 of IP2. It is intended to verify the degree of protection of enclosures against ingress of solid foreign objects having a diameter of 12.5mm or greater.
Customizable: used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer) .The probe whose model number is with "T" is with force.
Öğe Hayır. :
HT-I06Minimum Sipariş Miktarı (MOQ) :
1 SetÖdeme yöntemi :
T/T, L/CFiyat :
NegotiatableÜrün oranı :
ChinaTedarik Yeteneği :
30 sets / per monthKurşun zamanı :
3 daysGeleneksel ambalaj :

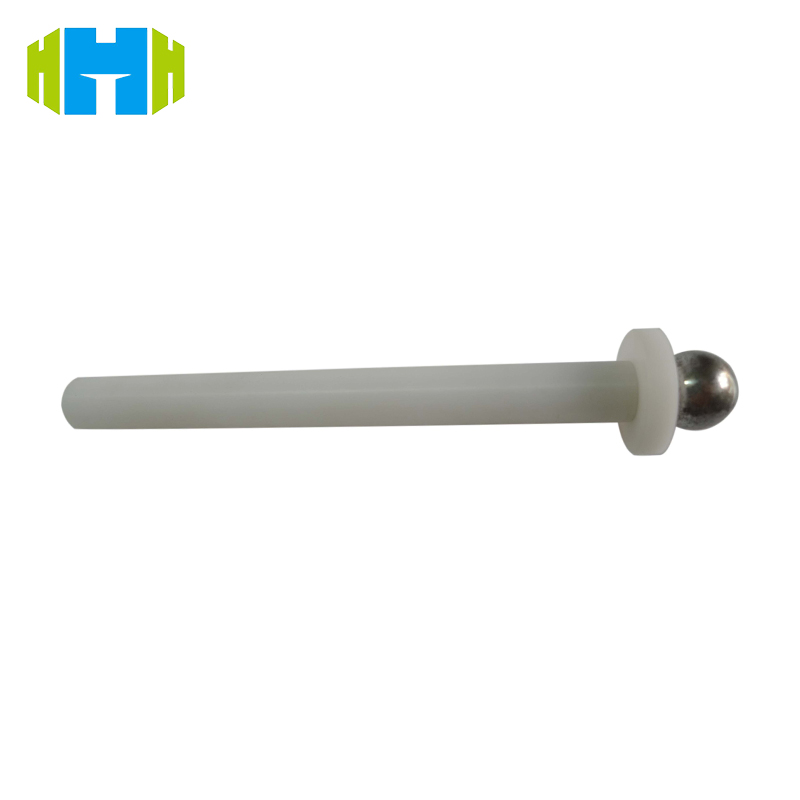

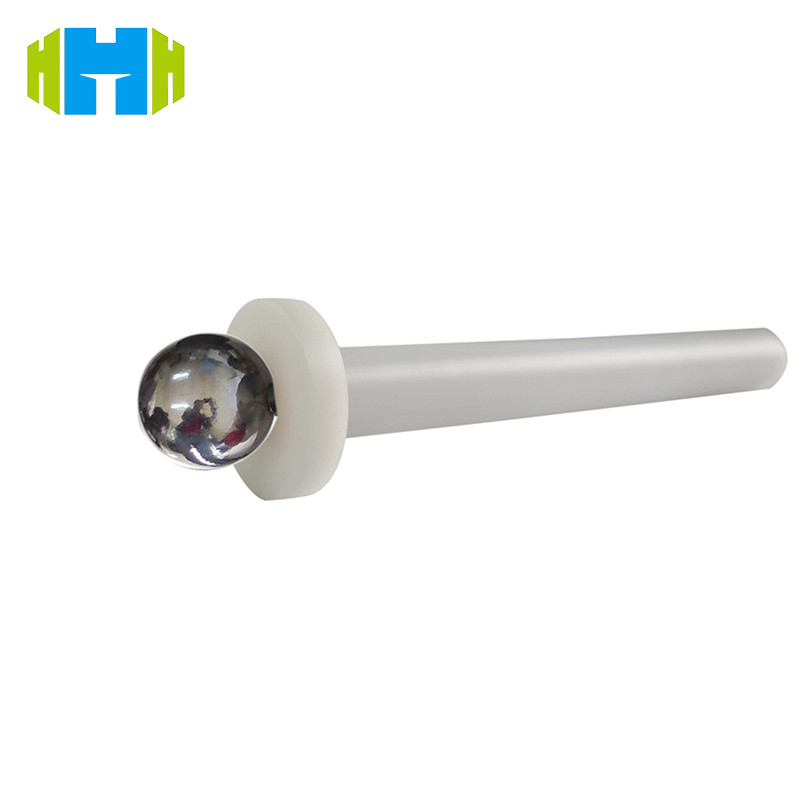

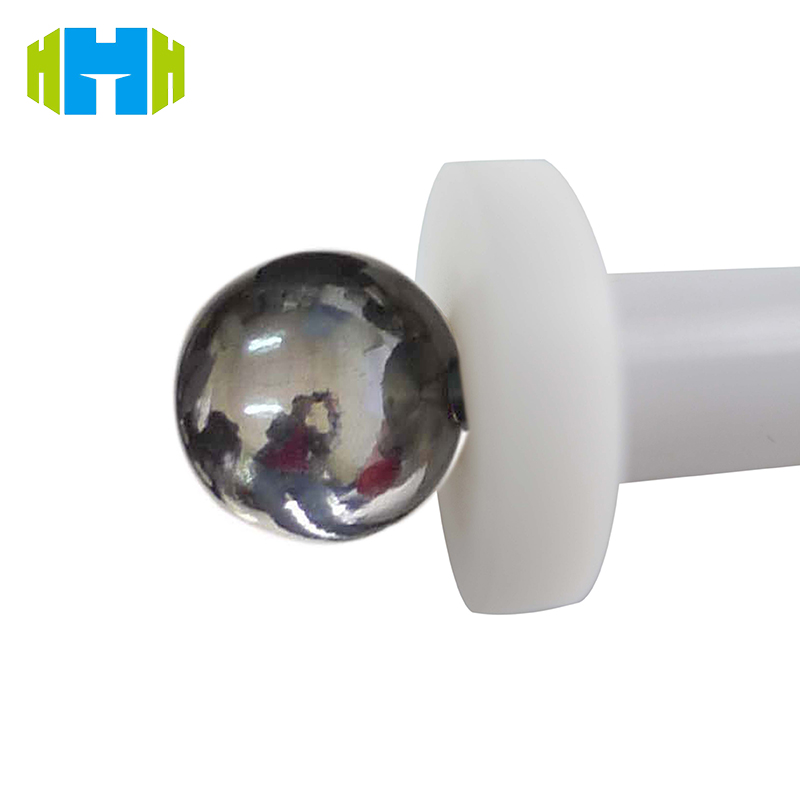

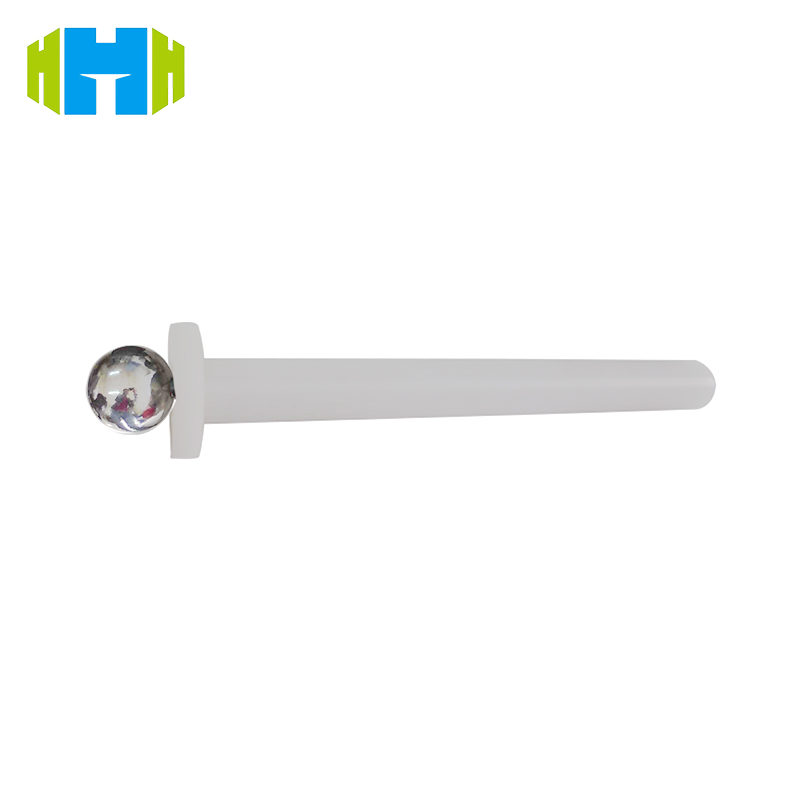

Aluminum BoxIEC60529 IP2 Ingress Protection Test Equipment Test Probe 2 - 12.5mm Steel Ball
IEC60335-1 Clause 22.1:
If the appliance is marked with the first numeral of the IP system or any of the additional letters of the IP system, the relevant requirements of IEC 60529:1 989 including IEC 60529:1 989/AMD1 :1 999 and IEC 60529:1 989/AMD2:201 3 shall be fulfilled.
Compliance is checked by the relevant tests. Ingress Protection Test Equipment

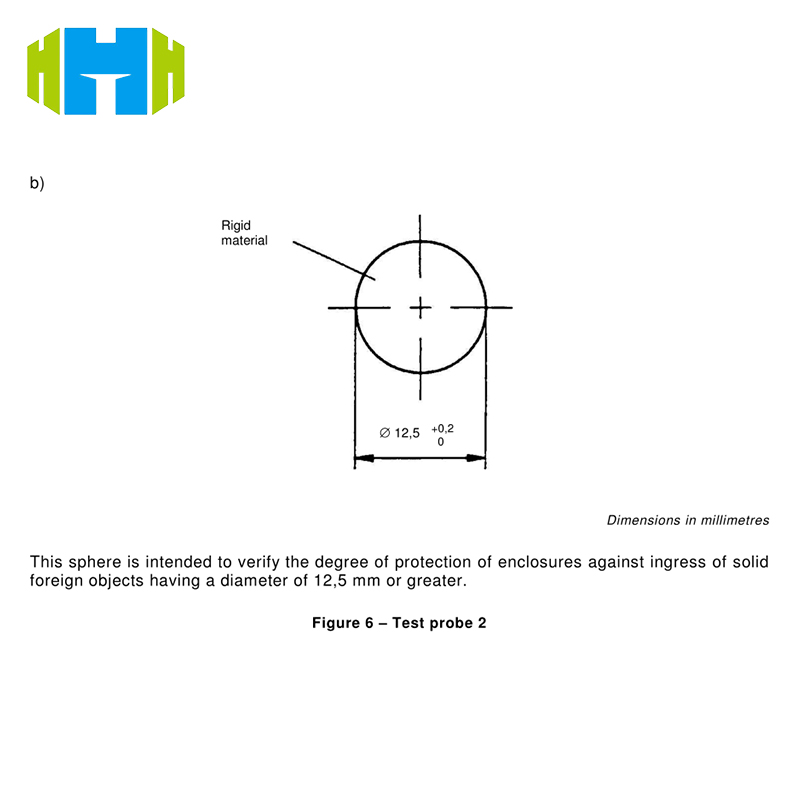

Standard:IEC61032 figure 6 probe 2,IEC60529 of IP2.
Application:It is intended to verify the degree of protection of enclosures against ingress of solid foreign objects having a diameter of 12.5mm or greater. Ingress Protection Test Equipment
Test sample:Easily accessible enclosure live parts or mechanical parts.
Feature:Steel ball, rigid test. Ingress Protection Test Equipment
Parameters:
| Model | HT-I06 |
| Name | Test probe 2 steel ball |
| Steel ball diameter | SФ12.5+0.2 |
| Force | ---- |
| Applied standard | IEC61032.1 |
