Water Cooled Vacuum Unit Oil-Free Cleaning System Vacuum Engineering Integrated Solution

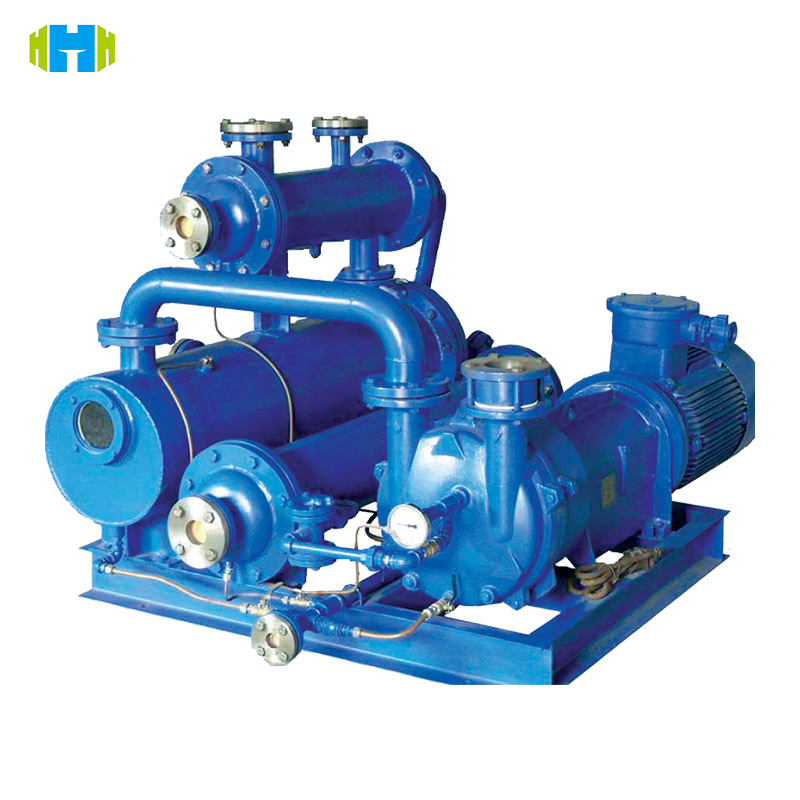

VEAT-007 is a fully integrated water-cooled vacuum system that integrates a water ring vacuum pump, a gas-liquid separator, a heat exchanger, and an intelligent control cabinet. It achieves 24-hour full-load operation, closed circulation of working fluid (saving 50% water), and an oil-free clean vacuum environment. It is suitable for vacuum distillation, drying, coating and other processes, and is resistant to harsh working conditions such as dust and high temperature. It complies with ISO 16078 safety standards and GB 19153 energy efficiency requirements.

Öğe Hayır. :
VEAT-007
Minimum Sipariş Miktarı (MOQ) :
1 Set
Ödeme yöntemi :
L/C, T/T
Fiyat :
Negotiatable
Ürün oranı :
CHINA
Tedarik Yeteneği :
10 Set per month
Kurşun zamanı :
90 Days
Geleneksel ambalaj :
Plywood

ŞİMDİ SORUŞTUR

Ürün Detayları

Water-Cooled Vacuum Unit Oil-Free Cleaning System Vacuum Engineering Integrated Solution

Product features:

Fully integrated delivery: including gas-liquid separator, heat exchanger, internal pipelines, on-site installation only needs to connect power supply and process interface, cycle ≤8 hours;
Compact design: occupies ≤2㎡ (basic model), saves 40% space compared with traditional units, and adapts to dense layout of production lines;
Zero maintenance window: one-key start and stop on the operation interface, seal life ≥8000 hours, annual maintenance cost reduced by 60%;
Silent cleaning: operating noise ≤75dB (A) (1m distance), oil-free design avoids oil mist pollution, meeting medical and electronic clean requirements;
Closed-loop water supply: working fluid circulation rate ≥95%, annual water saving ≥300 tons (calculated at 10m³/h flow);
All-weather operation: -10~45℃ environment adaptation, 24 hours full load without derating, production line efficiency increased by 30%;
Resistant to harsh working conditions: protection level IP54, resistant to dust and moisture (relative humidity ≤ 90%), suitable for metallurgical and chemical production lines;
Indirect cooling: external cooling water does not contact the working fluid, avoiding cross contamination and protecting the cooling system;
Intelligent interconnection: supports Modbus/485 communication, docking with MES system, real-time monitoring of vacuum degree, energy consumption, and working fluid level.

International reference standards:

ISO 16078-1:2021: Pressure protection (≤1.6MPa), electrical protection IP54.
GB/T 13929-2010: Pumping speed deviation ≤±5%, ultimate vacuum ≤300Pa.
ISO 14001:2015: Working fluid circulation rate ≥95%, water saving compliance.
GB 19153-2019: Energy consumption per unit pumping speed ≤0.15kW・h/m³.

Technical Parameters：

Parameter	Specification
Model No.	VEAT-007
Core Components	Water-ring vacuum pump, gas-liquid separator, plate heat exchanger, intelligent control cabinet
Ultimate Vacuum	≤300 Pa（steady state）
Pumping Speed	50~500 m³/h（customizable, at 10kPa）
Working Fluid Cycle	Closed-loop, consumption ≤5%/day
Cooling Method	Indirect cooling (external cooling water)
Noise Level	≤75 dB(A)（1m distance）
Power Supply	380V±10%/50Hz, 5~30kW（depending on config）
Temperature Control Range	-10~45℃（ambient）
Protection Rating	IP54（cabinet）/ IP44（motor）
Operation Mode	24/7 continuous load
Applicable Environment	Temp: -10~45℃, Humidity: ≤90%RH（non-condensing）
Connection Size	DN50~DN150（flange, customizable）
Equipment Weight	300~800kg（depending on config）
Dimensions (L×W×H)	1500×1000×1600mm（basic model）
Energy Efficiency	≤0.15kW·h/m³（GB 19153 compliant）
Communication Protocol	Modbus/RS485（MES integration support）
