Industrial vacuum nitrogen filling system

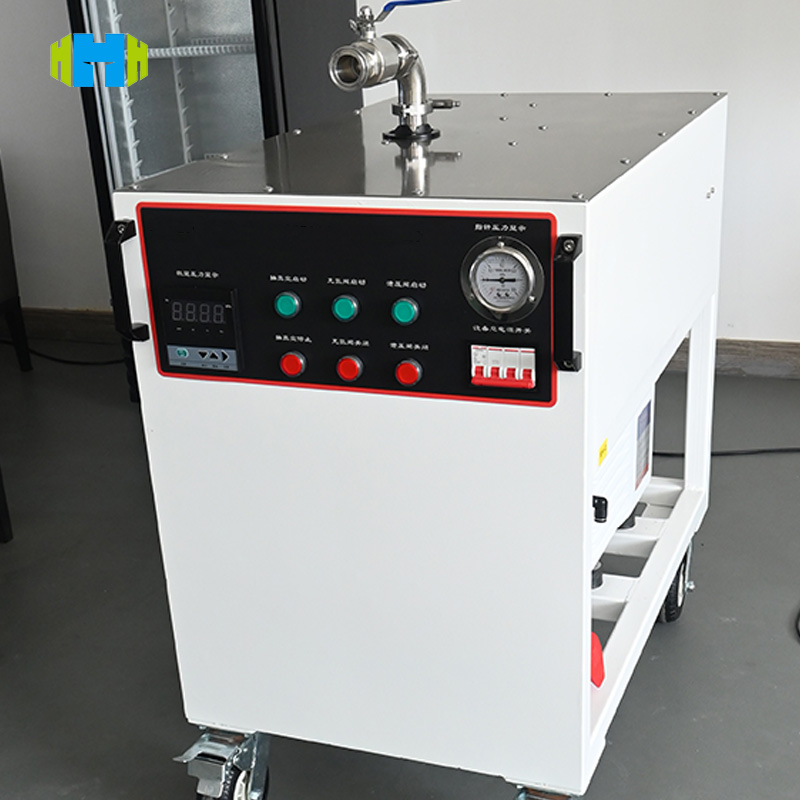

Iso 2037 Vacuuming And Nitrogen Filling Device Ultimate Pressure ≤-100kpa Intelligent Vacuum Replacement System

VET-005 integrates the dual functions of vacuuming and nitrogen filling, achieving an ultimate vacuum of ≤-100KPa and an efficient pumping speed of ≥28L/s. It is suitable for scenarios such as electronic packaging, food preservation, and chemical anti-oxidation. It is directly driven by a 380V industrial power supply and supports customized layout of production lines.

Öğe Hayır. :
VET-005
Minimum Sipariş Miktarı (MOQ) :
1 Set
Ödeme yöntemi :
L/C, T/T
Fiyat :
Negotiable
Ürün oranı :
CHINA
Tedarik Yeteneği :
1 Set per month
Kurşun zamanı :
90 Days
Geleneksel ambalaj :
Plywood

ŞİMDİ SORUŞTUR

Ürün Detayları

Iso 2037 Vacuuming And Nitrogen Filling Device Ultimate Pressure ≤-100kpa Intelligent Vacuum Replacement System

Product Introduction

VET-005 is based on the "mechanical pump core + gas path intelligent control" architecture:

Dual function integration: mechanical vacuum pump drives vacuuming, and DN8 nitrogen interface is used to complete nitrogen filling and replacement, automatically executing the "vacuuming → nitrogen filling" process.
Production line adaptation design: the air outlet is 850mm from the ground, compatible with the installation height of the baffle valve, and the 380V power supply is directly connected to the industrial production line.
Core parameter guarantee: ≥28L/s pumping speed quickly reaches ≤-100KPa vacuum, nitrogen inlet pressure ≤0.7MPa, meeting the vacuum replacement needs of mass production.

Product Features

Efficient extraction: ≥28L/s pumping speed, no-load fast to ≤-100KPa limit vacuum.
Precise replacement: DN8 nitrogen interface matches ≤0.7MPa pressure to ensure gas replacement uniformity.
Production line friendly: the air outlet is 850mm from the ground, adapted to the layout of industrial baffle valves.
Safe and reliable: 380V grounding protection + overload protection, IP54 dust and water resistance.
Flexible expansion: interface specifications and installation height support customization, adapting to non-standard production lines.

International reference standards

GB/T 30438-2013: Standardize the test method of vacuum pumping rate (≥28L/s) to ensure the measurement accuracy of vacuum performance.
GB 50029-2014: Requires safety control and pipeline sealing design of nitrogen inlet pressure (≤0.7MPa).
ISO 2037:2019: Defines the gas purity (≥99.9%) and switching logic specifications of the vacuum-nitrogen replacement process.

Product use

Electronic industry: vacuum nitrogen protection for component packaging and PCB board moisture-proofing.
Food field: vacuum deoxygenation + nitrogen filling for fresh-keeping packaging of nuts, cakes, etc.
Chemical scene: storage of oxidizable materials and vacuum nitrogen treatment before transportation.
Laboratory: The samples are protected from oxidation and moisture in a vacuum environment and sealed with nitrogen.

Technical Parameters

Item	Technical Details
Model	VET-005
Pumping Port Diameter	DN35 (35mm passage)
Pumping Port Height	≈850mm (from ground)
Ultimate Pressure	≤-100KPa (no - load)
Pumping Speed	≥28L/s (mechanical vacuum pump)
Power Supply	380V (grounding required)
Nitrogen Port Diameter	DN8 (fits 10mm inner - diameter pipe)
Nitrogen Inlet Pressure	≤0.7MPa
Control Mode	Manual/Automatic (PLC - optional)
Nitrogen Purity	≥99.9% (industrial grade)
Operating Temperature	-10℃~40℃
Noise Level	≤75dB (1m from device)
Safety Protection	Overload, leakage protection
Protection Grade	IP54 (dust - and - water - proof)
Custom Options	Port size, installation height (extendable)
