The equipment complies with environmental test standards such as IEC 60884-1 2013, clause 9.2, IEC 60068-3-5, IEC 60068-3-6, IEC 60068-2-1 (Test A), IEC 60068-2-2 (Test B and Ca), IEC 60068-2-78 (Test Ca) and IEC 60068-2-30 (Test Db), and is used to evaluate the moisture resistance of electronic and electrical products, components and materials under different temperature and humidity conditions. In addition, the equipment can also be used for storage, transportation and operation adaptability tests in extreme temperature environments to ensure a comprehensive evaluation of the heat, cold and dryness resistance of the samples. Applicable test samples include power sockets, similar electrical appliances, plugs, sockets, switches and other hazardous electrical components, as well as electronic, electrical appliances, mobile phones, instruments and meters, automotive parts and other plastic products.
Öğe Hayır. :
HH0811Minimum Sipariş Miktarı (MOQ) :
1 setÖdeme yöntemi :
L/C, T/TFiyat :
NegotiatableÜrün oranı :
ChinaTedarik Yeteneği :
10 set /monthKurşun zamanı :
30 daysGeleneksel ambalaj :
PlywoodTemperature Humidity Chamber for IP Testing Equipment Precision And Durability Guaranteed
Sample scope: plugs, sockets, switches (electronics, electrical appliances, mobile phones, communications, instruments, vehicles and other plastic products)
Product Features
High-grade baked steel plate paint or SUS 304 textured stainless steel, polyurethane foam insulation layer. Leakage protector for power supply, anti-dry boil device, water system protection device, extreme high and low temperature protection, temperature deviation alarm, compressor overpressure, overload, water shortage, phase loss protection.
Parameter
| Product Name | Programmable Temperature Humidity Chamber |
| Volume, size and weight | |
| Working Volume | 150L (can be customized) |
| Inner size | W600mm × H600mm × D460mm |
| Outer size | W900mm × H1800mm × D1500mm |
| Weight | 300KG |

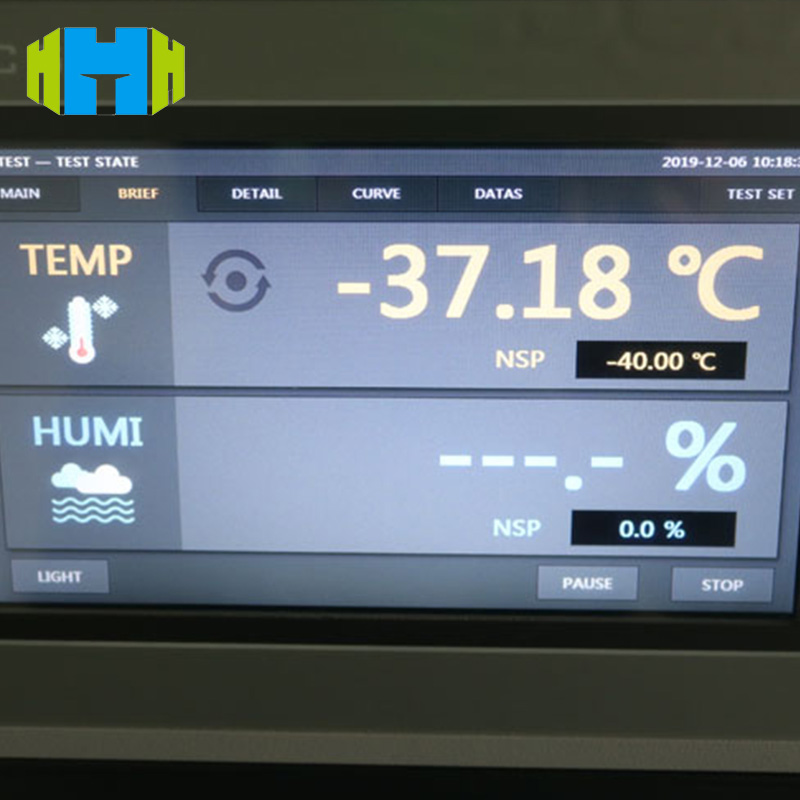

| Temperature controller | 7-inch programmable controller (touch screen) |
| Performance | |
| Temperature range | -40℃～+150℃ |

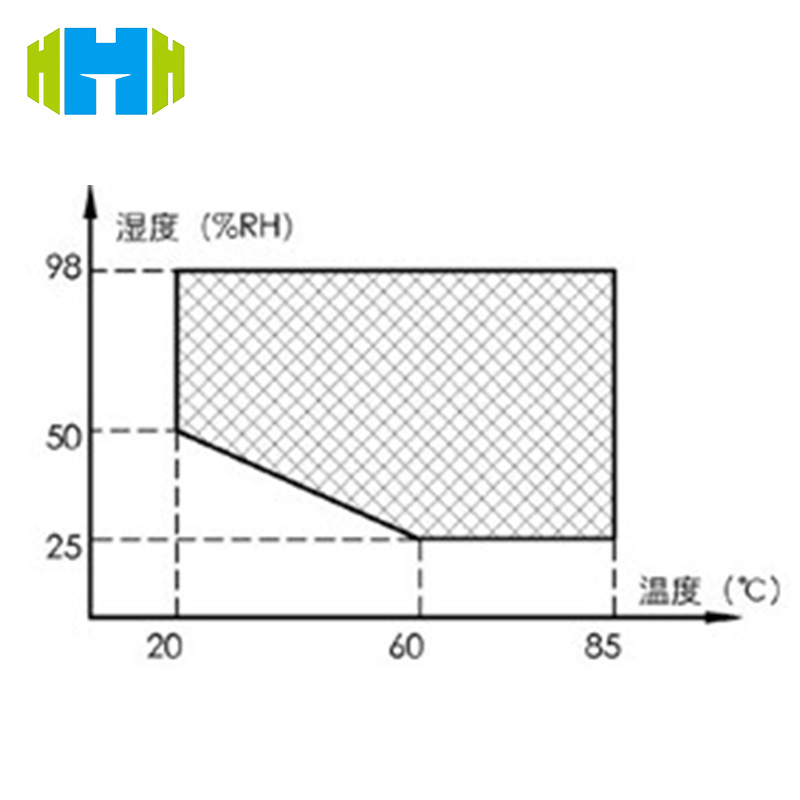

| Humidity range | 20-98%HR |
| Temperature deviation | ≤±2℃(without load, under constant state) |
| Temperature uniformity | ≤±2℃(without load, under constant state) |
| Temperature fluctuation | ±0.5℃(without load, under constant state) |
| Humidity deviation | ± 3% RH (above 75%); ± 5% RH (below 75%) |
| Heating rate | 3-5℃/ min |
| Cooling rate | 0.7-1℃/ min |
| Structure | |
| Outer material | 3A cold-rolled steel sheet with electrostatic double-sided plastic spray, color is pearl white |

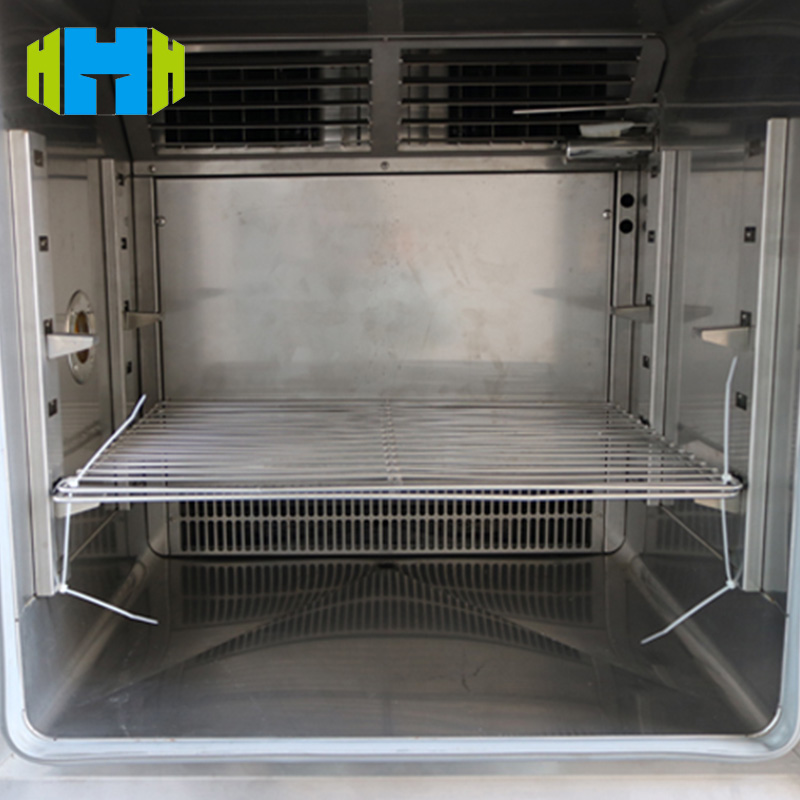

| Inner wall material | SUS304# mirror stainless steel plate |
| Insulation materials | 100mm rigid polyurethane foam |
| Observation window | Set on the door of the test chamber, size: about 300 × 460mm (width × height), coated with frost-proof insulating glass |
| Pin holes | 1 hole of Φ50mm, on the left side of chamber |
| Protection system |

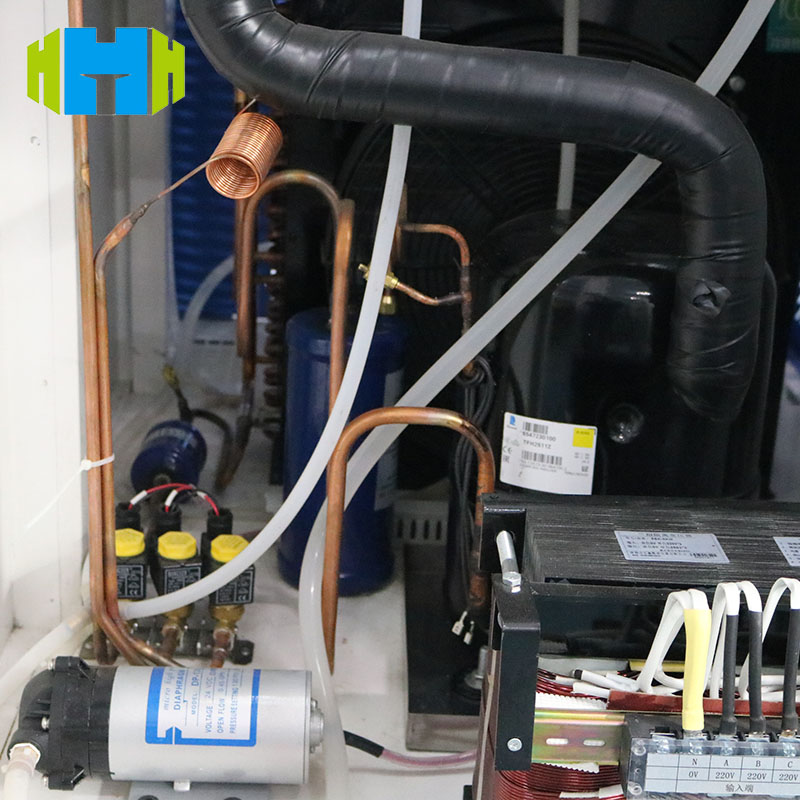

1 Chamber: 1) Independent over-temperature protector 2) Fan overheating protection 2 Cooling System: 1) Compressor overpressure 2) Compressor overcurrent 3) Compressor overheating 4) Exhaust temperature protection 3 Power system: 1) Power phase loss and phase sequence error protection 2) Leakage protection 3) Heater over-temperature protection 4) Overcurrent protection such as heater short circuit 4 Others: Test chamber shell ground protection
|
Our advantage service
We have our own developing and designing team, which ensure our own technological and innovative products for customers.
For any customers who have new idea about some products, just let us know, we can according to your idea provide a unique design of the products.
Technical support
All our workers are experienced and skilled.
After sale service
Our working team and sales teams can guarantee a fast and high efficiency after-sale service for our product sold to everywhere of the global.
About Us
Guangzhou Hongce Equipment Co., Ltd is a leading company in inspection equipment industry, established in 2003 and located in Guangdong, China. Our company introduced advanced equipment, combined with the most advanced technology production processes, strict quality control system to control the entire process of production. The company combined with a number of high-tech management personnel and advanced equipment, and together with the modern management, computer design and control, our products has reached the international advanced level. The company set R&D design, production, sales as one, specializing in producing electric wire inspection equipment of plug and socket, mechanical robustness testing equipment of electronics, inspection equipment of electronics’ on-fire danger, testing indicator of anti-electric shock and solid objects' entry, general inspection equipment, and other non-standard testing equipment. Our products enhance good selling at home and abroad, and have established supply relationships with a number of well-known companies.
