jointed test finger

This testing probe is used to verify the protection against access to hazardous parts through top openings.It meets IEC, EN, UL and CSA Standards, including IEC 1010, IEC60065, EN61010-1, UL3101-1, and CSA 1010-1.

HT-I20，HT-I21 20N socket protection door probe strictly complies with GB2099.1 - 2008 and IEC884 - 1.2002 related standards. It is specially designed to check whether the live parts inside the socket protection door are touched to ensure the safety of electricity use.

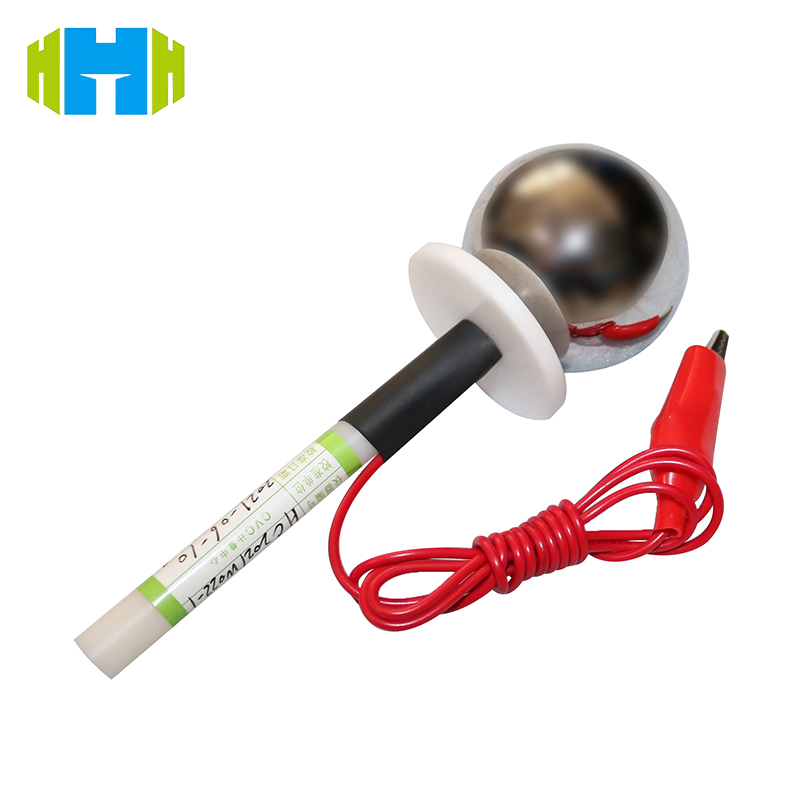

This probe made of stainless steel and nylon, the sphere made of stainless steel, the baffle and handle made of nylon. The diameter of sphere is 50mm. Baffle diameter is 45mm. Baffle thickness is 4 mm. Handle diameter is 10mm. Handle length is 100mm. It has no force, but there is an M6 threaded hole at the end of the handle to connect the push-pull meter.

The test hook complies with IEC60065. It is used to test whether the dangerous electric parts can be touched. The test hook is “hooked” into vents and seams in the enclosure & then pulled with a force (usually 20N). The hook has a hole at its long end, for use in conjunction with a PFI series Force Gauge. It is made entirely of stainless steel.

The test pin is used to do the scratch resistant test of the electrical solid insulation surface. It conforms to the standard requirement of IEC60335-1 clause 21.

This test sphere probe confirms to IEC61032 figure 5 test probe 1,IEC60335,IEC60950, IEC60598,UL507 standards. It is intended to verify the degree of protection of enclosures against ingress of solid foreign objects having a diameter of 50mm or greater. It is also regarded as the steel ball for dropping impact test. It can be equipped with a lifting ring, and used for pendulum bob test after hanging with a rope. Steel balls with other diameters can be customized.

This pin is intended to verify the protection against access to hazardous live parts in class 0 equipment and class II equipment. It conforms to IEC61032 figure 9 Test probe13, IEC60950 figure 2B, IEC60335 and IEC60065 standard requirements. Customizable: It can be used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer).

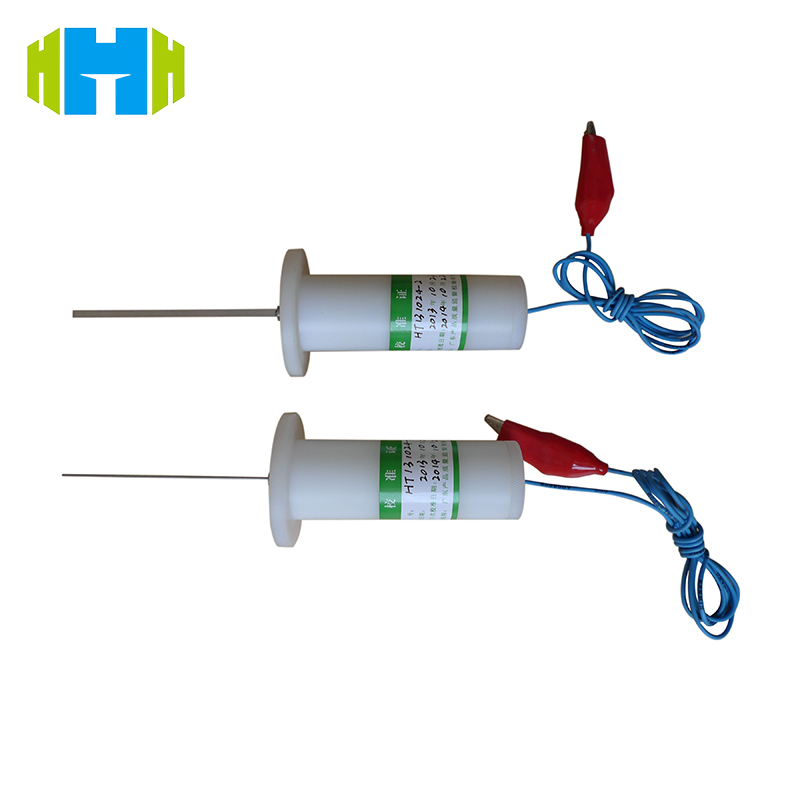

These two test probe separately confirm to the IEC60884-1 figure 9 and figure 10.The HT-I20 test probe with 20N force is used to test whether the live parts inside can be touched. The HT-I21 test probe with 1N force is for testing whether the live parts with the protection of socket can be touched.

HT-I26 scratch probe is specially designed for the easily accessible component surfaces of the protected cooling system in household appliances, including the scratch test of the easily accessible surface in close contact with the protected cooling system, such as the scratch resistance test of refrigerator doors. It strictly complies with GB4706.13 Figure 102, IEC60335-2-24 Figure 102 and other standards, and the quality is guaranteed by the source manufacturer.

The stirrer shall incorporate a biased-off switch that is recessed or guarded to prevent accidental operation. It conforms to the IEC60335-2-14 requirement. Appliance is checked by applying a cylindrical rod whose diameter is 40mm and which has a hemispherical end to touch the switch with a force not exceed 5N.The appliance shall not operated.

This probe conforms to the IEC60335-2-11 figure 104 and IEC60335-2-6-2002 figure 104 standard requirements. It is mainly used to measure the temperature rise on the front surface of the easily accessible parts of drum-type dryer, upright electric cooker, cooking bench and oven.

HT-U08 Test Rod Probe is designed strictly in accordance with UL1278 Fig 10.4 standard and is specially designed for safety protection detection of heating elements and their components. Its unique nylon handle + hard steel probe combination takes into account both operating comfort and detection reliability. It is a powerful assistant in the field of electrical safety detection and provides accurate protection for the safety protection of heating equipment.
