This testing probe is used to verify the protection against access to hazardous parts through top openings.It meets IEC, EN, UL and CSA Standards, including IEC 1010, IEC60065, EN61010-1, UL3101-1, and CSA 1010-1.
Öğe Hayır. :
HT-I27Minimum Sipariş Miktarı (MOQ) :
1 setÖdeme yöntemi :
L/C, T/TFiyat :
NegotiationÜrün oranı :
ChinaTedarik Yeteneği :
100 set/ monthKurşun zamanı :
7 DaysGeleneksel ambalaj :

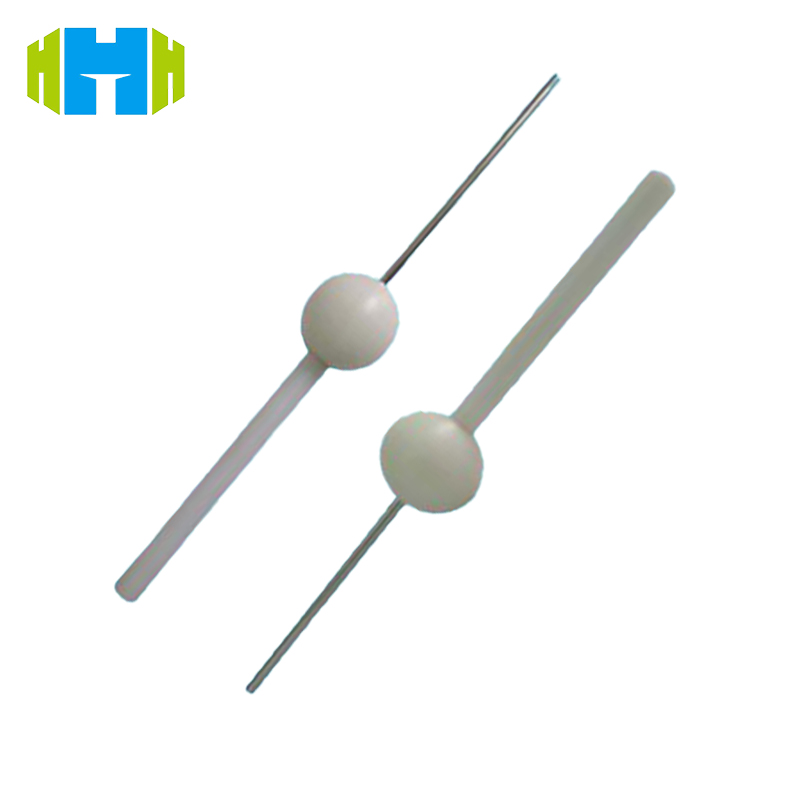

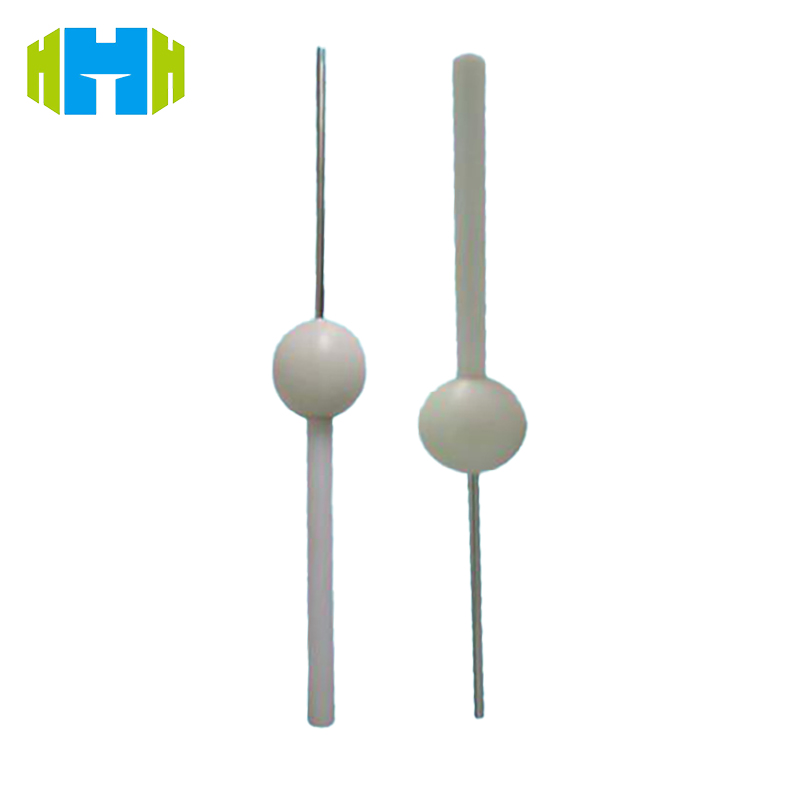

Aluminum Box4mm Hazardous Live Parts Probe Test Finger Probe IEC 1010 / IEC60065 / EN61010-1
Standard:
IEC60065 clause 9.1.3,EN61010-1, UL3101-1 and CSA 1010-1.
Application:
This testing probe is used to verify the protection against access to hazardous parts through top openings.
Test sample:
Audio, video and similar electronic apparatus.
Feature:
It can be used for anti-electric shock test when it is equipped with amphenol connector or used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer).
Parameters:
| Model | HT-I27 |
| 1 | Ф4+0.05 0 |
| 2 | SФ35±0.2 |
| 3 | Ф10 |
| 4 | 100±0.2 |
| 5 | 100 |
| 6 | IEC60065 clause 9.1.3,EN61010-1, UL3101-1 and CSA 1010-1 |
