HB6205 battery extrusion puncture tester strictly complies with international standards such as IEC62133, IEC60086, UL1612, etc. It is specially designed to simulate the actual use environment of power lithium batteries and is a key equipment for battery performance testing.
Öğe Hayır. :
HB6205Minimum Sipariş Miktarı (MOQ) :
1 setÖdeme yöntemi :
T/TFiyat :
NegotiationÜrün oranı :
ChinaTedarik Yeteneği :
10 set /monthKurşun zamanı :
25 daysGeleneksel ambalaj :
PlywoodVertical Pressure Structure Battery Crush Nail Penetration Test Equipment High Efficiency
Product Introduction

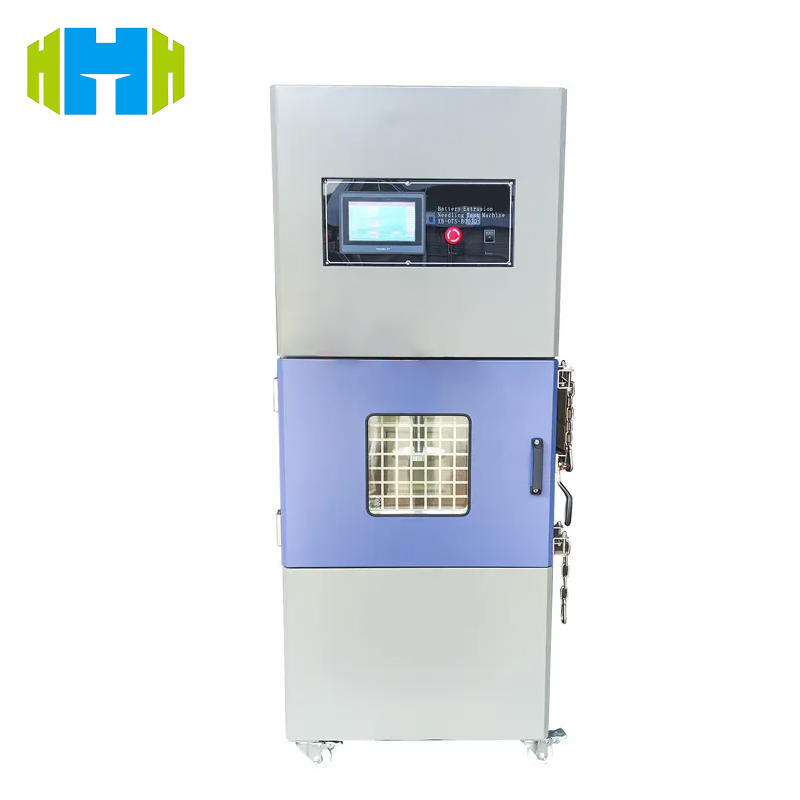

HB6205 Battery Extrusion Puncture Tester is a professional Battery performance test equipment. It adopts a vertical pressure structure to simulate the conditions of power lithium batteries in actual use scenarios such as extrusion and puncture, and feedback the test results under different conditions, helping enterprises and scientific research institutions to accurately evaluate the safety and performance of batteries. It is widely used in battery production, scientific research and other fields.
Product Features
Precise pressure control: The pressure range of 1KN - 20KN can be precisely controlled, and the force value error is only ±1%, ensuring that the test results are accurate and reliable.
Multifunctional testing: It can perform both extrusion testing and puncture testing to meet various testing needs.
Complete safety protection: Equipped with explosion-proof devices, air release functions, etc., it effectively reduces the impact of explosions and ensures the safety of operators.
Humanized design: It has a double-layer tempered glass observation window, built-in lighting, and a high-resolution camera system for easy observation of the test process; universal wheels and fixed casters are installed at the bottom of the equipment for easy movement and fixation.
Convenient maintenance: All parts that need to be disassembled are snap-on structures for easy maintenance; it has an exhaust system and a pressure balance system to ensure stable operation of the equipment.
International reference standards
IEC62133 clause 7.3.6, 8.3.5: specifies the safety requirements and test methods for batteries under conditions such as extrusion and puncture.
IEC60086-4 clause 6.5.3, IEC 60086-1: standards related to the electrical and mechanical safety of batteries.
GB/T 18332.2-2001: my country's relevant standards for lead-acid batteries for electric road vehicles.
UL1612, UN38.3, GB/T 31241-2014: standards covering safe transportation and performance testing of batteries.
Product use
Used to simulate the actual use environment of power lithium battery terminals, perform extrusion and puncture tests on batteries, evaluate the safety and performance of batteries under different conditions, and provide data support for battery research and development, production and quality control.
Parameters
| Structure | Vertical type with vertical pressure structure |
| Input Voltage | 380V 50 Hz |
| Pressure Range | 1KN ~ 20KN(Controllable) |
| Force Tolerance | ±1% |
| Crush Range | 0~400MM |
| Unit Switch | Kg/N/Lb |
| Nail Penetration Speed Range | 1 ~ 80mm/s(Controllable) |
| Speed Accuracy | ±0.1MM/S |
| Nail Penetrate Power | Oil Pressure |
| Testing Space | ≥ W300*D300*H200mm |
| Overall Dimension | W940XD780XH1620 mm |
| Observation Window | 390 X 360mm(20mm thick tempered explosion-proof glass) |
| Lighting | With light on chamber inner top side |
| Base | Installed with 4 universal wheels and 4 fixing casters, available for free moving and fixing . |
| Explosion -proof Devices | With air release function, exhaust the waste air which produced when testing; With explosion proof and pressure release function,Magnetic adsorption type pressure relief door on back side of protection cabinet(300*300mm),when with strong air shock, the relief door open automatically ,reduce explosion shock force . |
| Chamber Bottom | With extract type collection device for electrolyte and Experimental debris. |
| Tungsten steel needle |
Φ3X100MM 10 pieces Φ5X100MM 10pieces |
| Machine Weight | About 400KG |

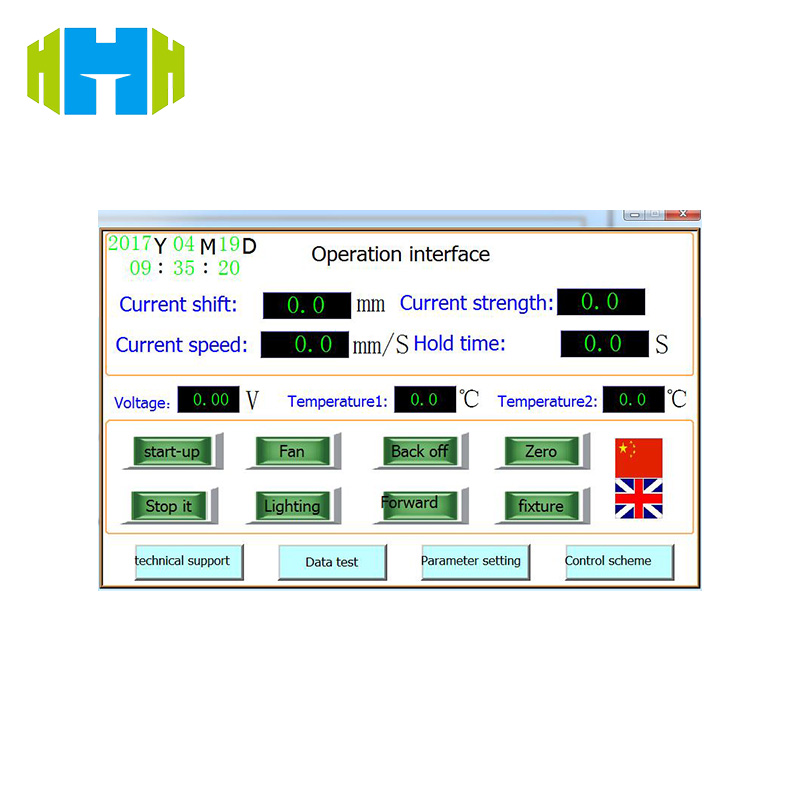

| Display Method | PLC Touch Screen |
Accessories
| 3mm Tungsten steel needle | 10pieces |
| 5mm Tungsten steel needle | 10pieces |
| Chuck wrench | 1piece |
| Steel needle clamp | 1 E.A |
| Pressure Sensor System | 1E.A. |
| Flat crush plate,diameter 150mm | 1piece |
