SF6 Gas Quantitative Leak Detector 0.01ppm Portable SF6 Leak Detection Equipment Iec 62271

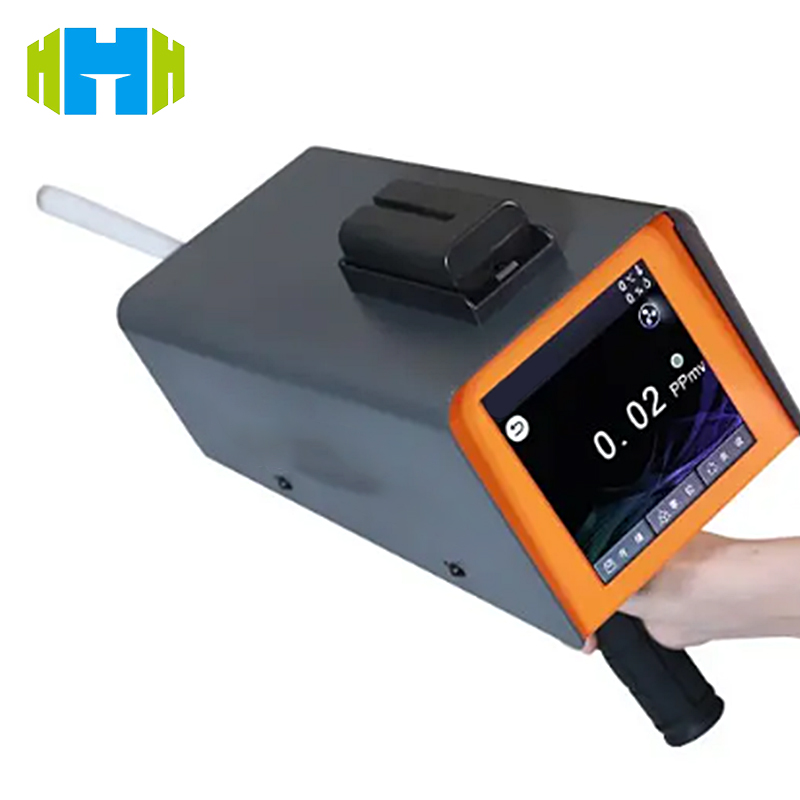

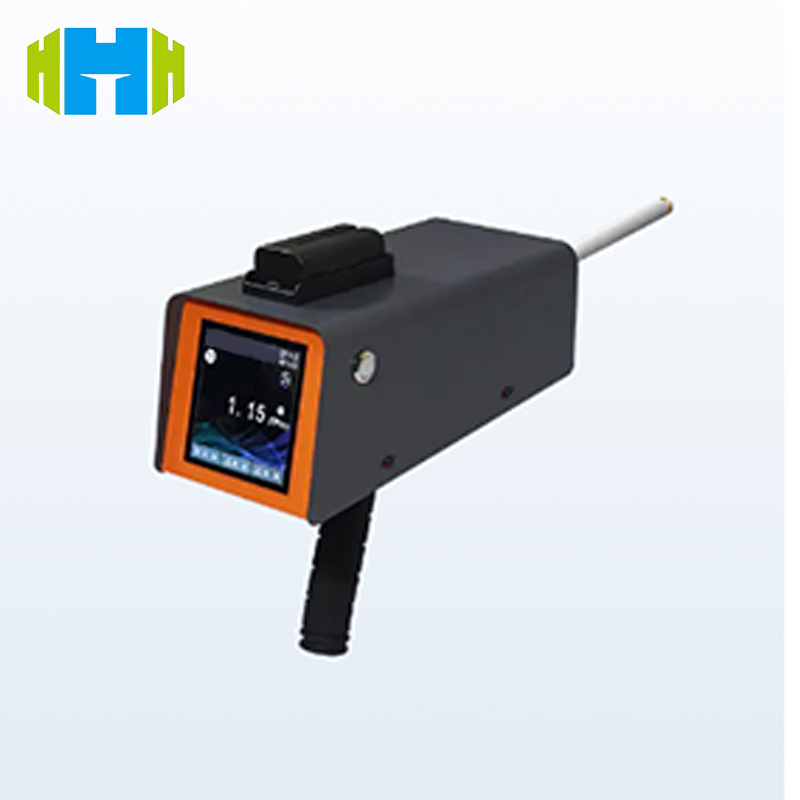

SF6T-002 high-precision SF6 gas quantitative leak detector is designed for power systems, energy and chemical industry, and environmental monitoring. It supports rapid positioning of SF6 gas leak points and accurate measurement of leak concentration, meeting international standards IEC 62271-203. It uses imported sensors and intelligent algorithms with a sensitivity of up to 0.01ppm, and is suitable for daily maintenance and troubleshooting of key equipment such as GIS equipment, circuit breakers, and transformers, helping enterprises achieve efficient and environmentally friendly operation and maintenance.

Öğe Hayır. :
SF6T-002
Minimum Sipariş Miktarı (MOQ) :
1 Set
Ödeme yöntemi :
L/C, T/T
Fiyat :
Negotiatable
Ürün oranı :
China
Tedarik Yeteneği :
20 Set per month
Kurşun zamanı :
30 Days
Geleneksel ambalaj :
Plywood

ŞİMDİ SORUŞTUR

Ürün Detayları

SF6 Gas Quantitative Leak Detector | 0.01ppm | Portable SF6 Leak Detection Equipment | Iec 62271

Product Introduction

- SF6T-002 is a professional-grade SF6 gas leak detection device that combines high sensitivity, fast response and portability. Through negative ion capture (NIC) technology, quantitative detection of SF6 leaks can be achieved in complex environments without relying on argon or other high-pressure gases. Equipped with a color LCD screen and multi-frequency sound and light alarm function, it supports data storage, wireless transmission and real-time analysis, and is suitable for on-site operation and maintenance and safety monitoring in industries such as power, petrochemicals, and ships.

Product Features

- Ultra-high sensitivity: The minimum detection value is 0.01ppm, and it can identify tiny leaks as low as 3g per year.
- Fast response: Response time <1 second, recovery time <10 seconds, greatly improving detection efficiency.
- Intelligent display and alarm: 5-inch color screen displays concentration, temperature curve and environmental parameters in real time, and sound and light alarms are triggered at multiple levels.
- Portable design: Built-in long-lasting lithium battery, continuous work for 10 hours, the probe can be extended to 1.5 meters, suitable for narrow spaces.
- Data management: Store 800 sets of data, support RS485/Bluetooth transmission, compatible with PC analysis software78.
- International standard certification: Comply with IEC 62271-203, MT/T 845-1999 and other standards to ensure that the test results are authoritative and reliable39.

International reference standard

- IEC 62271-203 High-voltage switchgear SF6 gas tightness test specification, requiring an annual leakage rate of ≤0.5%7.
- MT/T 845-1999 Coal mine tunnel SF6 tracer gas detection technical specification, applicable to closed environment leakage monitoring39.
- ISO 9001:2015 quality management system certification to ensure the standardization of product production and services610.

Product use

- Power industry: Detect SF6 leakage in GIS equipment, circuit breakers, and transformers to ensure the insulation performance of high-voltage equipment14.
- Environmental monitoring: Track SF6 greenhouse gas in industrial emissions to support carbon peak and carbon neutrality goals59.
- Petrochemical and Shipping: Detect fluoride leakage in closed pipelines and storage tanks to prevent safety hazards68.
- Scientific research and laboratories: Precision measurement scenarios such as gas purity analysis and leakage simulation experiments10.

Technical Specifications

Parameter	Specification
Target Gas	SF6, HFC, CFC, HCFC, and other halogens
Detection Range	0.01ppm～2000ppm
Sensitivity	0.01ppm (Minimum Detectable Value)
Response Time	<1 second
Accuracy	≤±1% F.S
Operating Temperature	-30℃～+50℃
Power Supply	Rechargeable Li-ion Battery (10-hour runtime)
Data Storage	800 datasets
Display	5-inch Color LCD (Backlit)
Output Interfaces	RS485, 4-20mA, Bluetooth
Probe Length	Flexible Handheld Probe (Extendable to 1.5m)
Protection Rating	IP65 (Dustproof & Waterproof)
Weight	2.5kg (Host + Probe)

Test objects and test items

- Test objects: GIS switch cabinet, SF6 circuit breaker, transformer, gas storage tank, refrigeration equipment, environmental monitoring system.
- Test items: leak point location, annual leakage rate calculation, gas purity analysis, environmental concentration monitoring, equipment sealing evaluation.

After-sales service

- Warranty policy: 3-year warranty for the whole machine, free lifetime calibration of the sensor 810.
- Technical support: 7×24 hours online response, providing remote fault diagnosis and operation training.
- Maintenance service: 30 service outlets nationwide, door-to-door maintenance within 48 hours.
- Data report: Provide test report templates in international standard format.
