Portable SF6 gas purity analyzer 0%-100% ISO 9001 SF6 testing equipment

Portable SF6 gas purity analyzer 0%-100% ISO 9001 SF6 testing equipment

Product Introduction

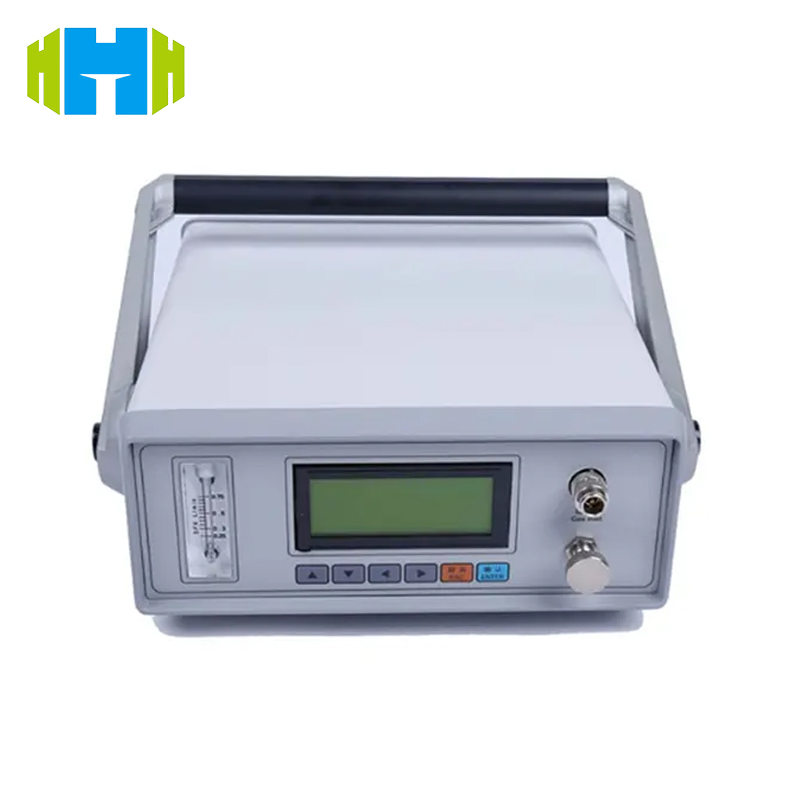

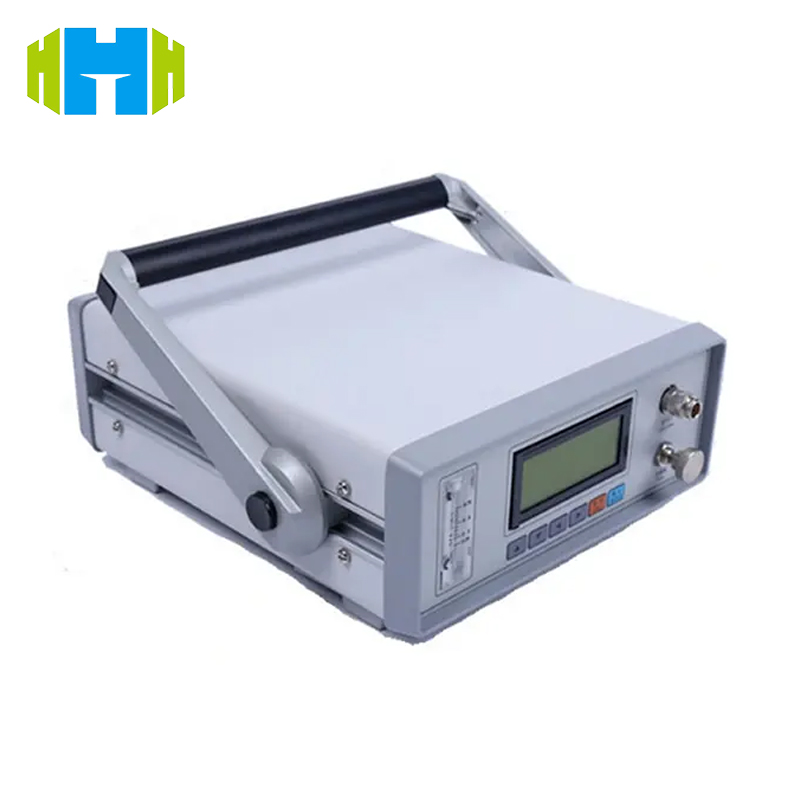

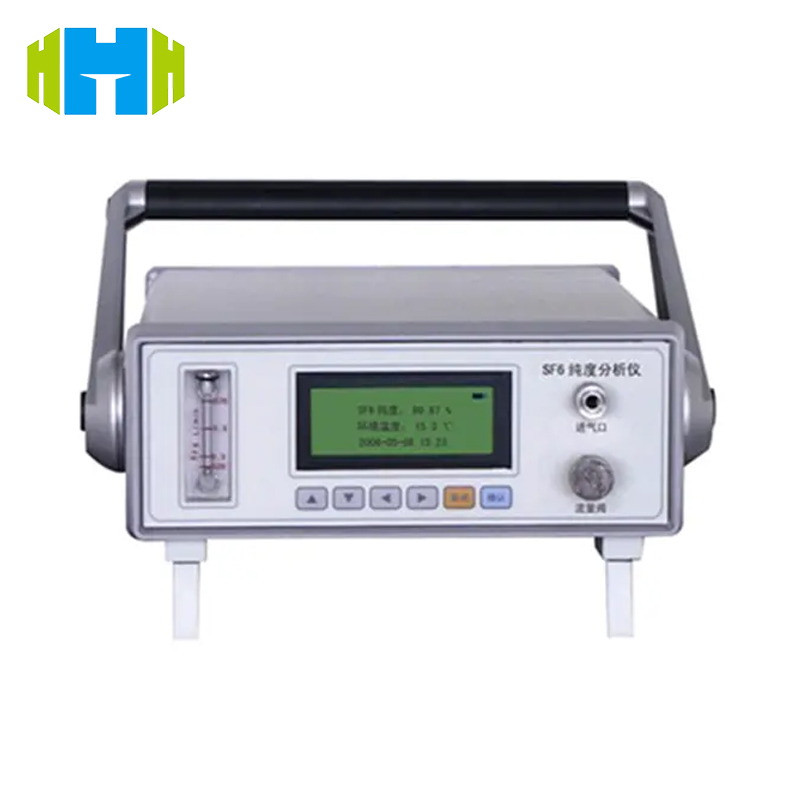

SF6T-003 takes portability (3kg weight, 250×100×300mm³ size) and high efficiency as its core advantages:

1. Instant start and test: no preheating is required, the machine starts instantly, outputs purity value within 2 minutes, and the gas consumption is only 0.5L (101.2kPa), saving detection costs.
2. Precise and reliable: ±0.5% accuracy, covering the full range (0%-100%), German self-locking joints ensure gas path sealing to avoid leakage interference.
3. Intelligent management: LCD screen displays purity, time, and power in real time, RS232 interface connects to printer, and 100 sets of data storage are easy to trace and analyze.
4. Environmental adaptation: working temperature -30℃~+50℃, humidity 0~100% RH, built-in lithium battery (charging >20h, battery life 10h) + AC220V dual power supply, to meet complex working conditions.

Product Features

• Extremely portable: lightweight body, non-slip bottom design, suitable for outdoor, high-altitude and other field operations, single-person operation.
• Extremely fast detection: industry-leading detection speed of <2 minutes, far exceeding similar products (traditional equipment takes 5-10 minutes), improving detection efficiency by more than 3 times.
• Safety seal: German original self-locking connector, passed 100,000 plug-in tests, leakage rate <0.01%, ensuring operator safety.
• Long-lasting battery life: lithium battery supports 10 hours of continuous work, with AC power supply, no fear of power outages, suitable for use in remote areas.
• Data intelligence: 100 sets of data storage + RS232 printing, seamless connection to LIMS system, to achieve electronic management of detection data.

International reference standards

• CE certification: complies with the European Low Voltage Directive (LVD) and Electromagnetic Compatibility Directive (EMC) to ensure safety and performance.
• ISO 9001: Quality management system certification, standardized production process, high product consistency.
• CNAS calibration: Calibrated by China National Accreditation Service for Conformity Assessment, data accuracy is traceable, and meets the requirements of metrology regulations.

Product use

• Power industry: Detect gas purity in SF6 circuit breakers and GIS equipment, evaluate insulation performance, and prevent equipment failures (such as short circuits and insulation failures).
• Laboratory: Analyze the ratio of SF6 and N₂ mixed gases to support scientific research experiments (such as gas insulation material research) and quality control.
• Industrial production: In the SF6 gas recovery and purification process, real-time purity monitoring is carried out to ensure that the product meets the standards (such as electronic grade SF6 purity ≥99.9%).

Test objects and test items

• Test objects: SF6 gas (pure gas, mixed gas with N₂), SF6 gas in power equipment, SF6 mixture in industrial production.
• Test items: SF6 purity (0%-100%), gas leakage (verified by joint sealing), environmental adaptability (the influence of temperature and humidity on detection).

After-sales service

Warranty:

1 year free warranty (free replacement of accessories for non-human damage), lifelong technical maintenance (cost fee charged for overdue).

Response:

Reply to inquiries within 6 hours, urgent orders are given priority; delivery within 7 working days (regular orders).

Support:

• Provide CE, ISO 9001, CNAS certification and factory test reports to meet international procurement requirements.
• Global technical support, engineers can go to the site for debugging (advance appointment is required, and the cost is negotiated).
• Transportation: Choose sea transportation, air transportation, and express delivery according to customer needs, and the cost is transparent (calculated by volume, weight, and destination).

Technical Parameters
