HT - I17 test fixture 43 strictly complies with GB/T16842 Figure 17, IEC61032 Figure 17 and other standards. It is specially designed for testing the protection of fixed or portable visible heat radiation heaters. It is carefully crafted by the source manufacturer to ensure the safety of heating equipment.
Öğe Hayır. :
HT-I17Minimum Sipariş Miktarı (MOQ) :
1 setÖdeme yöntemi :
T/TFiyat :
NegotiatableÜrün oranı :
ChinaTedarik Yeteneği :
100 set/ monthKurşun zamanı :
7 DaysGeleneksel ambalaj :

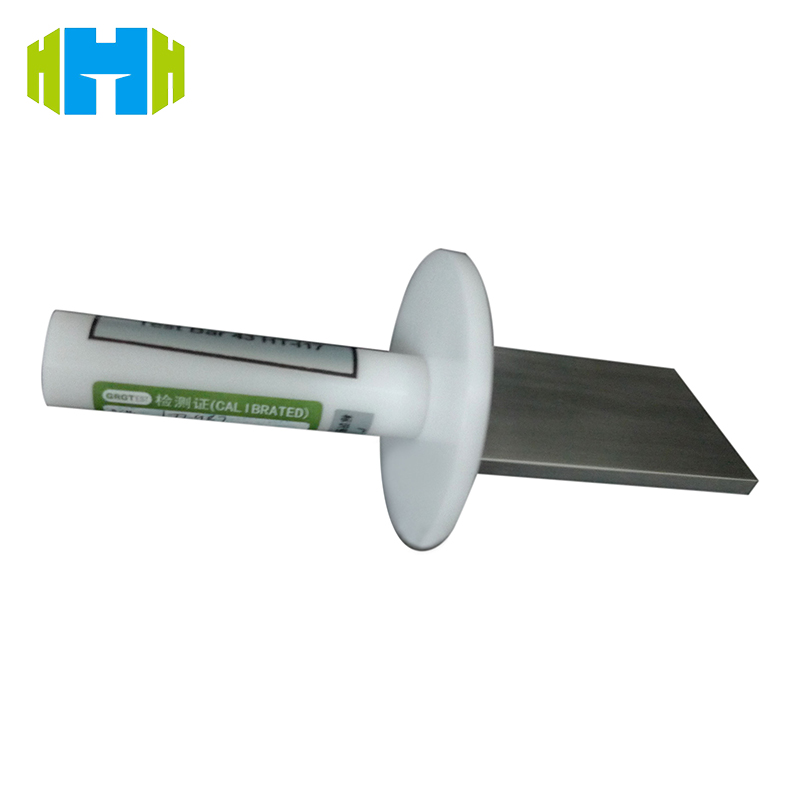

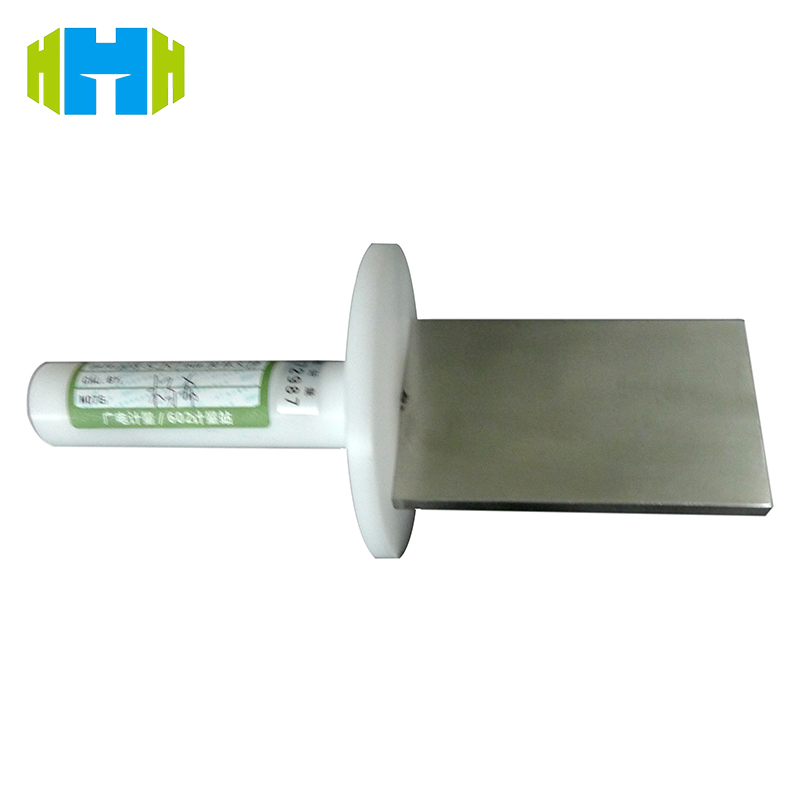

Aluminum BoxIec61032 Fig 17 Test Finger Probe Mechanical Parts Protection Inspection
Standard:
IEC61032 ‘Protection of persons and equipment by enclosures - Probes for verification’ figure 17.
Application:
It is used for testing the protection of thermal radiation heaters which are fixed or portable visibly.
This bar is intended to verify the preotection of fixed and portable visibly glowing radiant heaters.
Test sample:
Easily accessible enclosure live parts or mechanical parts.Test Finger Probe
Feature:
It is used for testing the protection of thermal radiation heaters which are fixed or portable visibly.
Parameters:
| Name/Model | Test bar 43 / HT-I17 |
| Rectangular bar height | 5±0.05 Test Finger Probe |
| Rectangular bar width | 50±0.15 |
| Rectangular bar length | 80±0.2 |
| Handle | Nylon |
| Probe material | Stainless steel |
