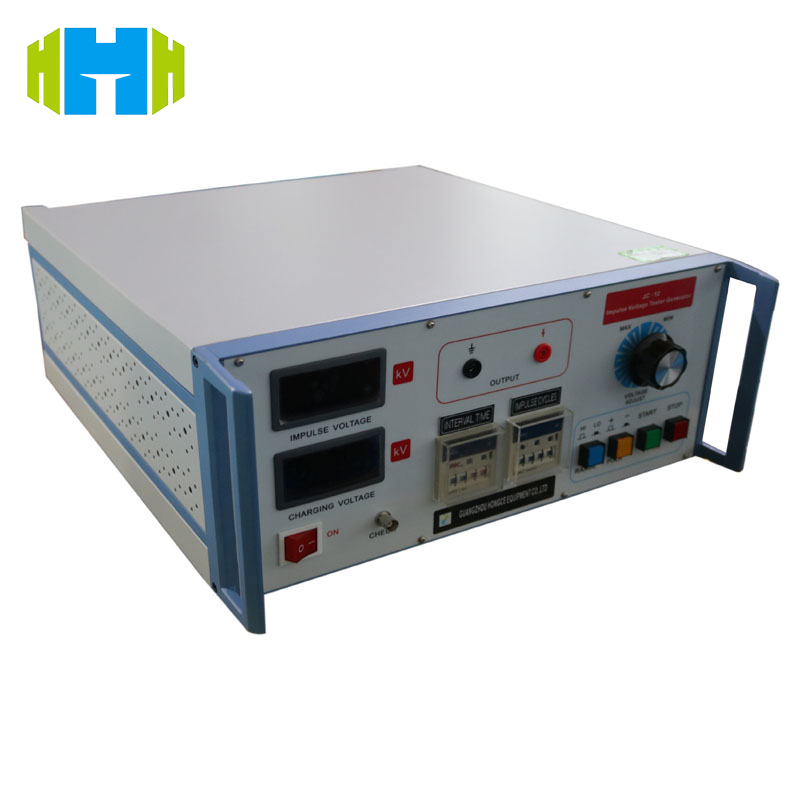

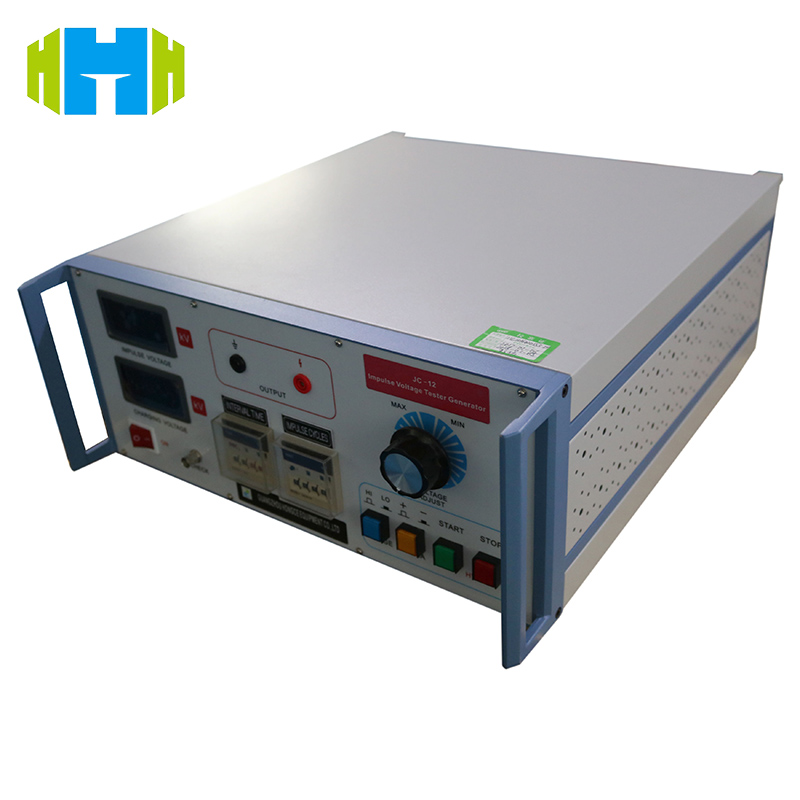

IEC60255-5 Household Impulse Voltage Tester Output Voltage Of 12kV (Max) ±5％

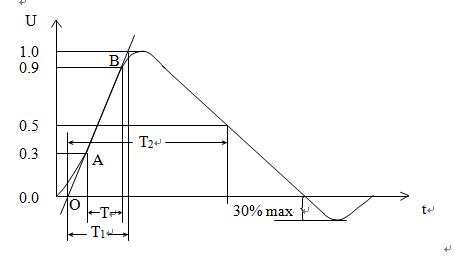

HJ0602 electrical impulse voltage tester, with an output voltage of up to 12kV (±5%), accurately generates 1.2/50μs standard impulse waveform (wavefront time 1.2μs±30%, half-wave time 50μs±20%), complies with IEC 60335-1 Clause 14 standard, has built-in overvoltage and overcurrent protection, and can automatically or manually detect transient overvoltage, electrical clearance and creepage distance of household appliance components. It is widely used in household electrical safety performance testing.

Öğe Hayır. :
HJ0602
Minimum Sipariş Miktarı (MOQ) :
1 Set
Ödeme yöntemi :
T/T, L/C
Fiyat :
Negotiatable
Ürün oranı :
China
Tedarik Yeteneği :
10 set per month
Kurşun zamanı :
20 days
Geleneksel ambalaj :
Plywood

ŞİMDİ SORUŞTUR

Ürün Detayları

IEC60255-5 Household Impulse Voltage Tester Output Voltage Of 12kV (Max) ±5％

Application:

Impulse Voltage Tester HJ0602 is manufactured in accordance with the IEC60255-5 "Insulation Test of Electrical Relays" promulgated by the International Electrotechnical Commission (IEC), measuring the insulation coordination of relays and protective devices, and performing impulse voltage tests.

Feature:

7-inch touch LCD interface, rich in functions, easy to operate, easy to upgrade software

Intelligent programmable high voltage power supply, built-in high voltage over voltage, over current and short circuit protection

Output intelligent detection, voltage error, no output warning

Parameters:

Output voltage	12kV (Max) ±5％
Impulse wavefront time: Impulse wavefront time: Impulse wavefront time:	1.2μs ±30％
Half value of after wave time	50μs ±20％
Capacitance	0.8U
Output polarity	Positive, negative, positive and negative cycle

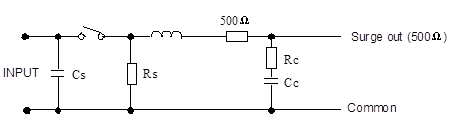

Output resistance (optional)	2Ω,500Ω±10％	12Ω,500Ω±10％
Impact mode	Automatic or manual
Impact cycles	1-9999
Impact interval time	3-999s(3s of which is the inherent charging time of the device)
Power source	AC220±10％,50/60Hz
Dimension	470mm×260mm×500mm
Weight	30kg
