IEC 60335-1 Home Appliance Testing Equipment Test Probe Live Indicate Device Safety test equipment

This test network conforms to the measuring network requirements of IEC60990 touch current and the measurement method of protective conductor current, (figure 4-mesuring network touch current weighted (sensory current or reaction current). This network is convenient to use and easy to operate, and the power supply switch is made separately, which can solve the shortcomings of power supply capacity of the previous machine and can test the more powerful products.

Öğe Hayır. :
CT-2
Minimum Sipariş Miktarı (MOQ) :
1 set
Ödeme yöntemi :
T/T
Fiyat :
Negotiatable
Ürün oranı :
China
Tedarik Yeteneği :
100 set/ month
Kurşun zamanı :
7 Days
Geleneksel ambalaj :
Aluminum Box

ŞİMDİ SORUŞTUR

Ürün Detayları

IEC 60335-1 Home Appliance Testing Equipment Test Probe Live Indicate Device

Product Introduction

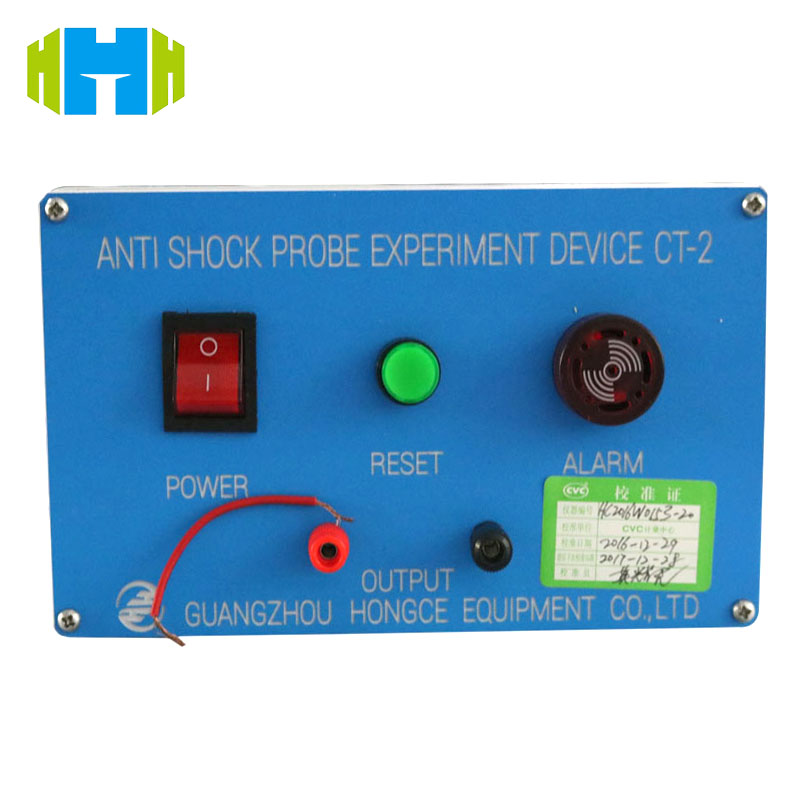

The CT-2 probe anti-electric shock test device is designed to ensure the safety of electrical equipment. This device strictly follows international standards and is a core tool for testing the anti-electric shock performance of electrical equipment. It is widely used in the research and development, production and quality inspection of various electrical products, providing users with reliable safety testing solutions to ensure that products comply with international safety regulations and effectively prevent electric shock risks.

Parameter Details:

Resistance RS: 1500Ω, crucial for current regulation and measurement precision within the network.
Resistance RB: 500Ω, playing a role in shaping the electrical characteristics and current pathways.
Capacitance CS: 0.22μF, influencing the network’s capacitive reactance and current behavior.
Resistance R1: 10000Ω, integral to voltage division and current control.
Capacitance C1: 0.022μF, impacting the network’s frequency response and filtering capabilities.

Product Features

Designed strictly in accordance with IEC60990 standards to ensure accurate test results and provide solid protection for product safety.
Humanized design allows even novices to quickly get started and improve detection efficiency.
Using high-quality components, it can maintain stable performance after long-term use and reduce maintenance costs.
It can detect a variety of electrical equipment to meet the needs of different users.

Product use:
The CT-2 probe anti-electric shock test device is mainly used to detect the contact current of electrical equipment, evaluate the anti-electric shock protection performance of the equipment under normal use and fault conditions, ensure that the equipment meets safety standards, and prevent users from electric shock accidents during use. It is widely used in product quality inspection and certification in home appliances, electronics, power and other industries.

Summary

The IEC60990 Figure 4 Touch Current Measuring Network stands as a pivotal instrument in electrical testing. It meticulously adheres to relevant IEC standards, particularly in touch - current and protective - conductor - current measurement. Its design, equipped with an independent power switch for effortless operation, overcomes the power - supply shortcomings of earlier versions, enabling testing of high - power electrical products. Parameters RS, RB, CS, R1, and C1 are carefully set, each making a distinct contribution to regulating electrical properties such as current, voltage, and frequency response. For testing, combining an oscilloscope, a suitable voltage probe, and an adjustable power supply is essential. This equipment combination ensures comprehensive and accurate measurement capabilities across various testing scenarios.
