The device is used to check abrasion strength of printed circuit boards or the insulating accessible parts of the household appliances. It conforms to the standard requirement of IEC60950 clause 2.10.8.4 and IEC60335-1 clause 21.2.
Öğe Hayır. :
HJ0604Minimum Sipariş Miktarı (MOQ) :
1 setÖdeme yöntemi :
L/C, T/TFiyat :
NegotiatableÜrün oranı :
ChinaTedarik Yeteneği :
10 set per monthKurşun zamanı :
30 daysGeleneksel ambalaj :

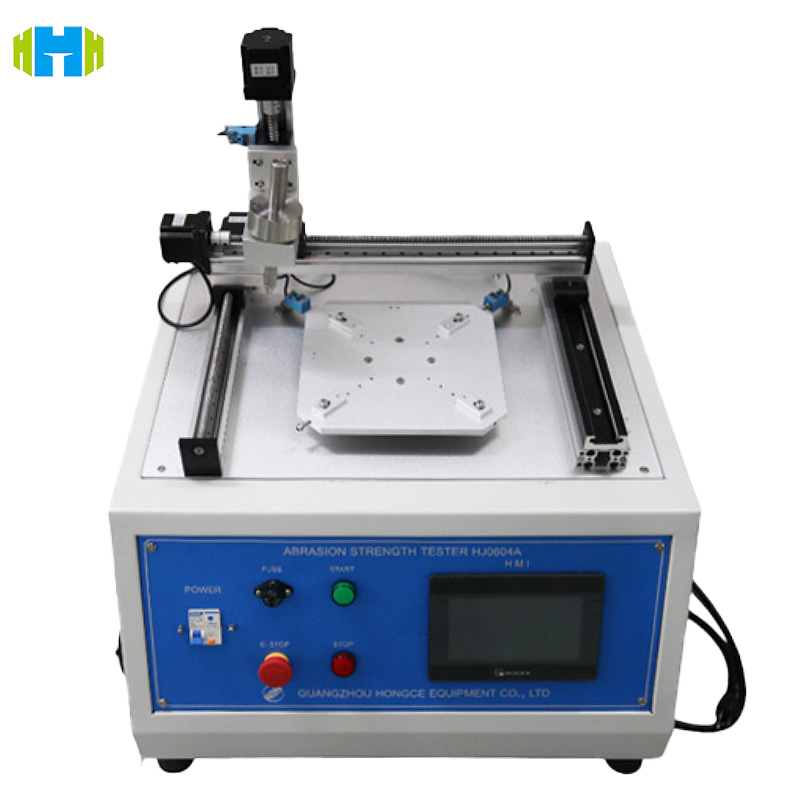

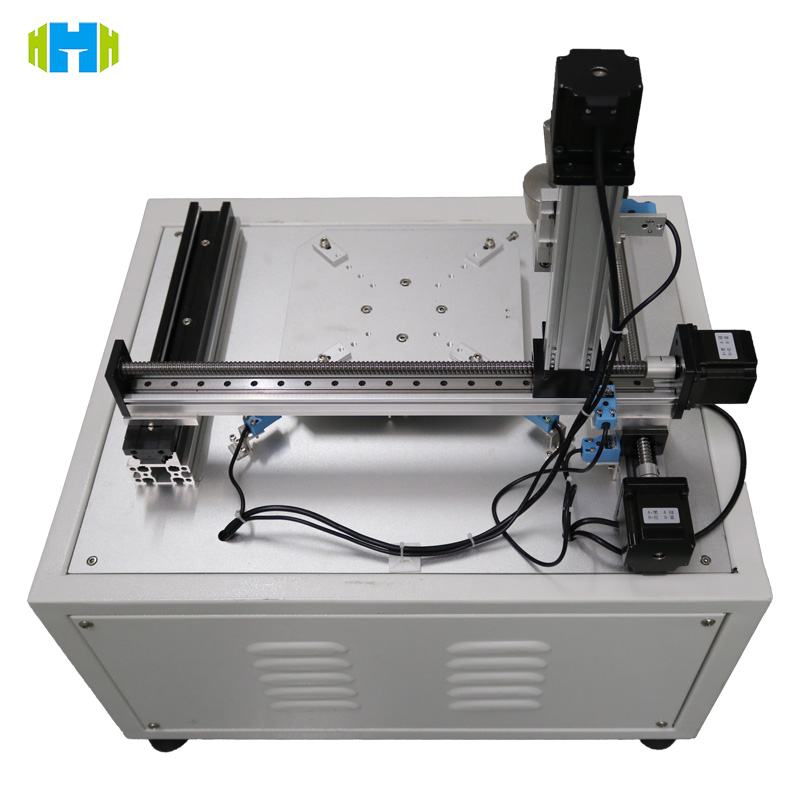

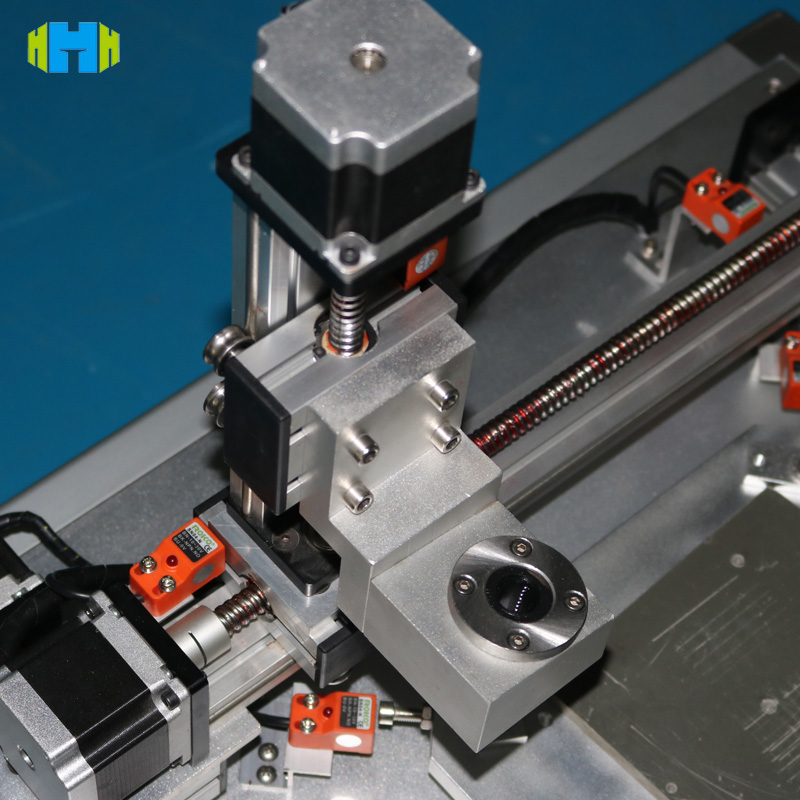

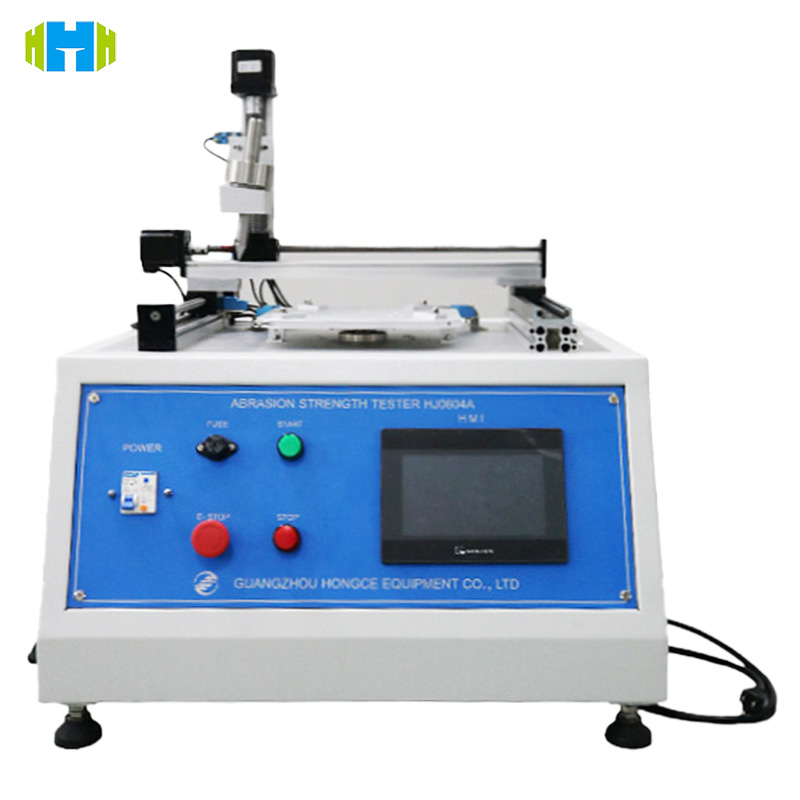

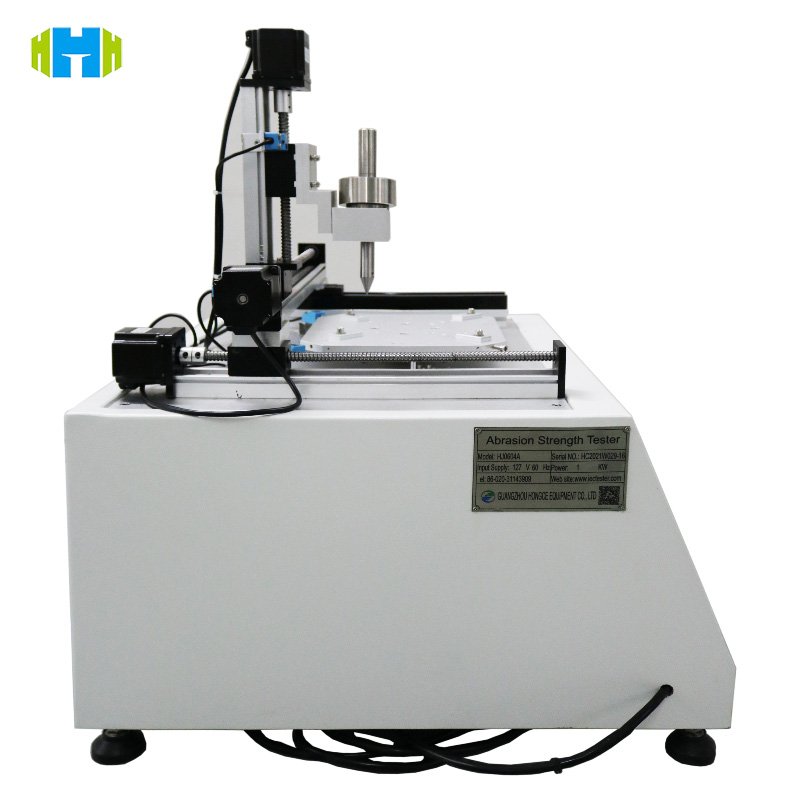

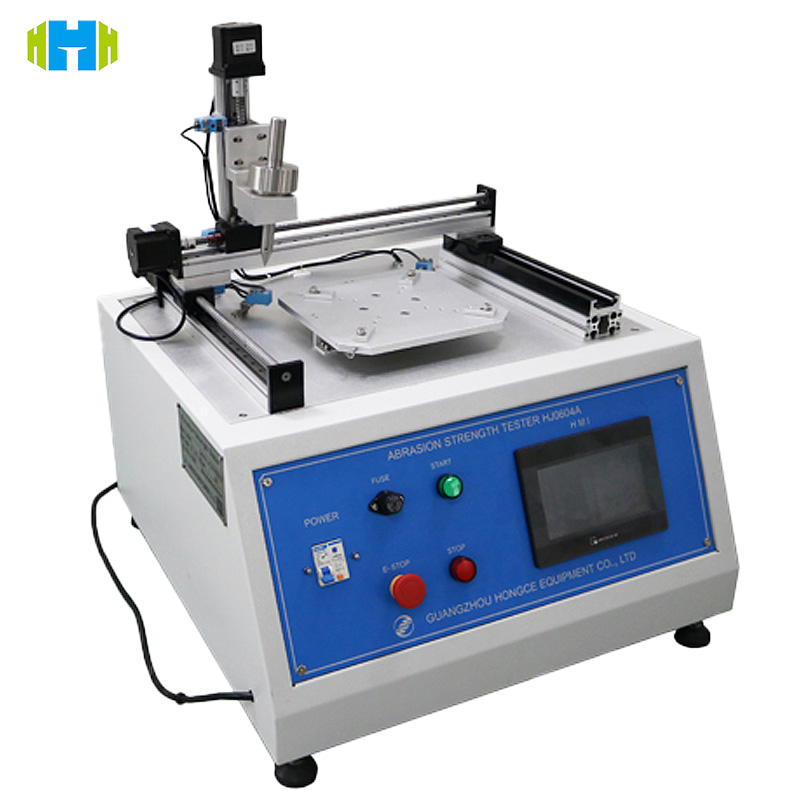

PlywoodHome Appliance Testing Equipment Scratched Test By Steel Pin with 10N Load
Standard of Home Appliance Testing Equipment:
IEC 60335-1 Household and similar electrical appliances – Safety – Part 1: General requirements clause 21.2.
Application of Steel Pin Scratch Resistance Testing Equipment:
Accessible parts of solid insulation of the Household and similar electrical appliances shall have sufficient strength to prevent penetration by sharp implements.
Parameter of Home Appliance Testing Equipment:
| Input power supply | AC 220V/50Hz |
| Test station | One station |
| Control system | PLC + touch screen |
| Drive mode | Stepper motor drive |
| Scratch speed | 0-25mm/s adjustable, can be preset |
| Scratch times | 0-9999 times, can be preset |
| Scratch distance | Approximately 25 % of the length of the insulation, can be preset |
| Scratch load | 10N±0.5N, it can be equipped with the weight of 20N to reach the scratch load of 30N±0.5N |
| Scratch pin | Hardened steel pin, the end of which has the form of a cone with an angle of 40o. Its tip is rounded with a radius of 0,25 mm ± 0,02 mm |
| Scratch angle | 80o to 85o to the horizontal |
