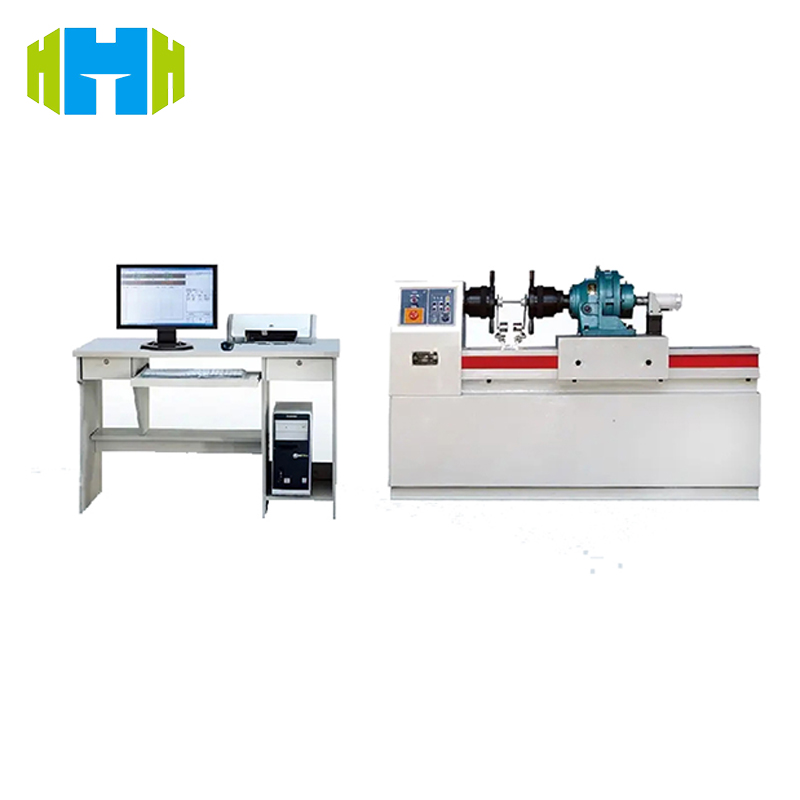

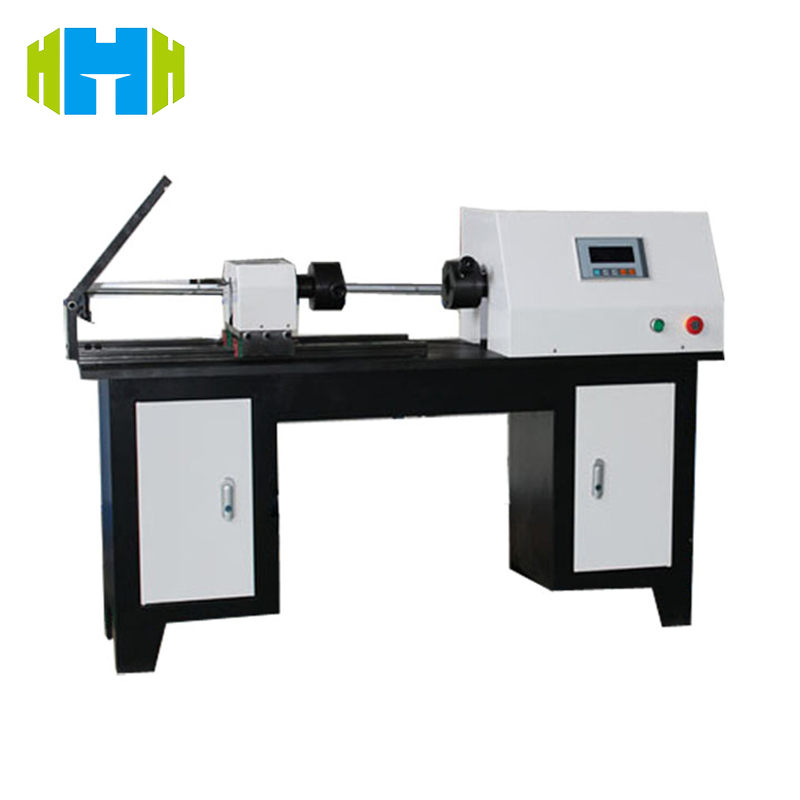

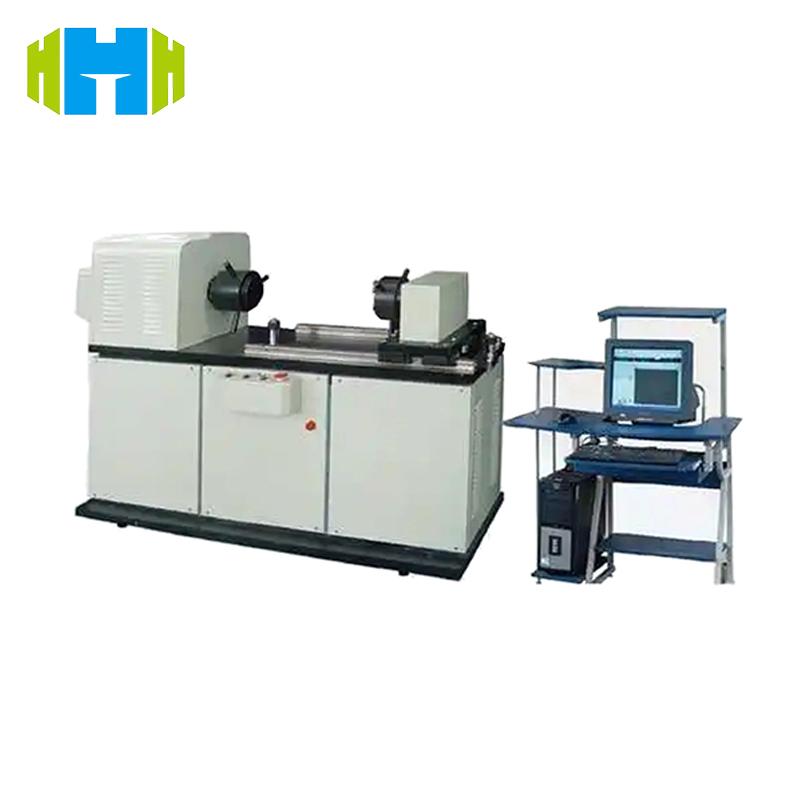

AM0006 drive shaft torsion tester is an ideal partner for automotive parts performance testing. It is designed for automotive drive shafts, couplings, connectors and other parts. By simulating the torsion load under actual working conditions, it accurately detects the mechanical properties of the parts, ensures the stable operation of the product in a complex environment, and safeguards the safety and performance of the car.
Öğe Hayır. :
AM0006Minimum Sipariş Miktarı (MOQ) :
1 setÖdeme yöntemi :
L/C, T/TFiyat :
NegotiableÜrün oranı :
ChinaTedarik Yeteneği :
10 set /monthKurşun zamanı :
40 daysGeleneksel ambalaj :
PlywoodGB/T 10128-1998 GB/T 10128-2007 Transmission shaft torsion testing machine auto parts performance testing equipment
Product Application
It is used for torsional performance testing of automotive drive shafts, couplings, connectors, connecting rods, various mandrels, tensioners, clutches, shock absorbers, bolts, vehicle tools and other components. It can accurately analyze key indicators such as torque, torsion angle, fatigue strength, etc. to ensure the quality and safety of components.
Test objects
Automobile transmission shafts, couplings, connectors, connecting rods, mandrels, tensioners, clutches, shock absorbers, bolts, vehicle tools and other automobile parts.
International reference standards
GB/T 10128-1998 "Method for torsion test of metals at room temperature": standardizes the torsion test process and requirements of metal materials at room temperature.
GB/T 10128-2007 "Method for torsion test of metals at room temperature": updates the test technology to ensure that the test results are in line with international advanced standards.
Working environment requirements
1, In a stable foundation or work table
2, In the absence of vibration and the surrounding environment without corrosive medium
3, In the room temperature of 10°C ~ 35°C, relative humidity ≤80%
4, The fluctuation range of power supply voltage should not exceed ±10% of the rated voltage
Technical indicators
|
Model |
HCTE0014 |
|
Model Selection |
Z - W500Nm/Z - W1000N/Z - W2000Nm/Z - W3000Nm/Z - W5000Nm |
|
Maximum test torque |
500 nm / 1000 nm / 2000 nm / 3000 nm / 5000 nm |
|
Torque measurement range |
1%- |
|
Minimum readable numerical value of torque |
0.01Nm/0.1Nm/0.1Nm |
|
Relative error of torque indicating value |
±1% |
|
Minimum readable numerical value of torsion Angle |
0.1° |
|
Maximum torsion Angle |
99999° |
|
Torque Angle measurement relative error |
±1% |
|
Torsion speed |
1-720°/min |
|
Sample size |
0.1-500mm |
|
Maximum spacing between collets |
500mm |
|
Rotation direction of test |
bidirectional |
|
Testing machine level |
level 1 |
|
Power supply |
220V, 50Hz |
